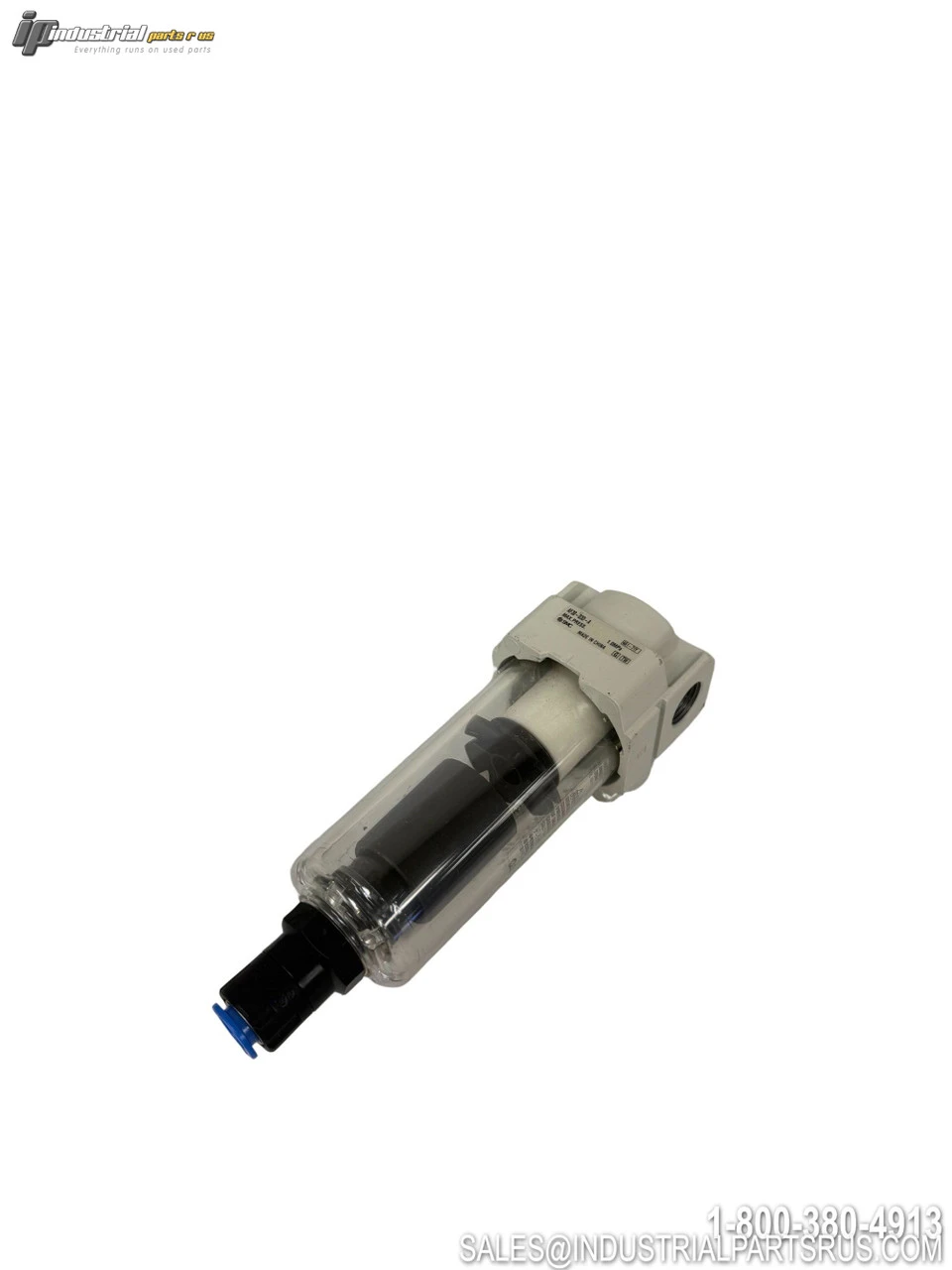

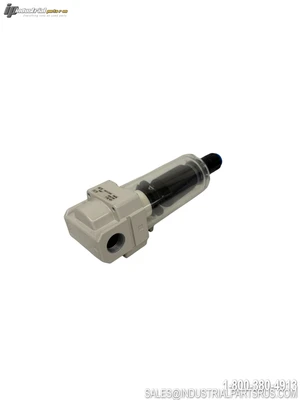

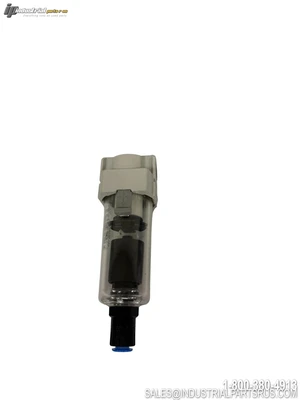

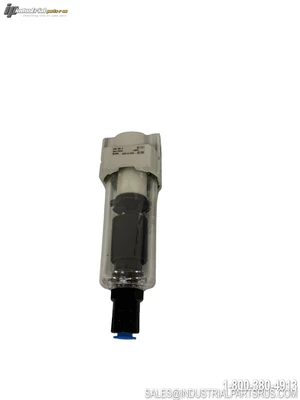

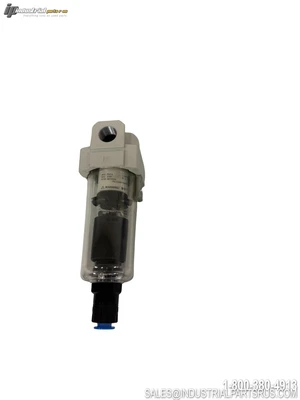

USED SMC AF30-03D-A

The SMC AF30-03D-A is a modular-style compressed air filter from SMC's AF Series, designed for use in pneumatic air preparation systems (F.R.L. units). The AF modular style air filter combines the element and bowl in one piece, making element replacement easy. The AF bowl (size 30 and 40) is covered with a transparent bowl guard allowing 360° monitoring, and the modular design allows connection with other SMC air preparation equipment.
Specification
Value
Brand
SMC
Model / Part Number
AF30-03D-A
Series
AF Series
Product Type
Modular Air Filter
Body Size
30
Port Size
3/8 (Rc / BSPT)
Thread Standard
BSPT (Rc)
Port Gender
Female
Filtration Size
5 micron (µm)
Maximum Operating Pressure
1 MPa (145 PSI / 10 bar)
Minimum Operating Pressure (N.O.)
0.1 MPa
Rated Flow Rate
450 L/min (ANR)
Drain Type
Float Type Auto Drain, N.O. (Normally Open)
Bowl Material
Polycarbonate
Bowl Guard
Transparent Bowl Guard (360° visibility)
Body Material
Die Cast Aluminum
Seal Material
NBR
Filter Element Material
Non-woven Fabric
Operating Temperature
-5°C to +60°C (23°F to 140°F)
Flow Direction
Left to Right
Pressure Unit (Name Plate)
MPa
Overall Length
53 mm
Weight
0.18 kg (0.5 lb)
Fluid
Compressed Air
Mounting
Standard (Without Mounting Option)
Modular / FRL Compatible
Yes – Compatible with SMC Air Preparation Equipment
Element Replacement Interval
Every 2 years or when pressure drop reaches 0.1 MPa
We warranty all items for 30 days from date of purchase.
