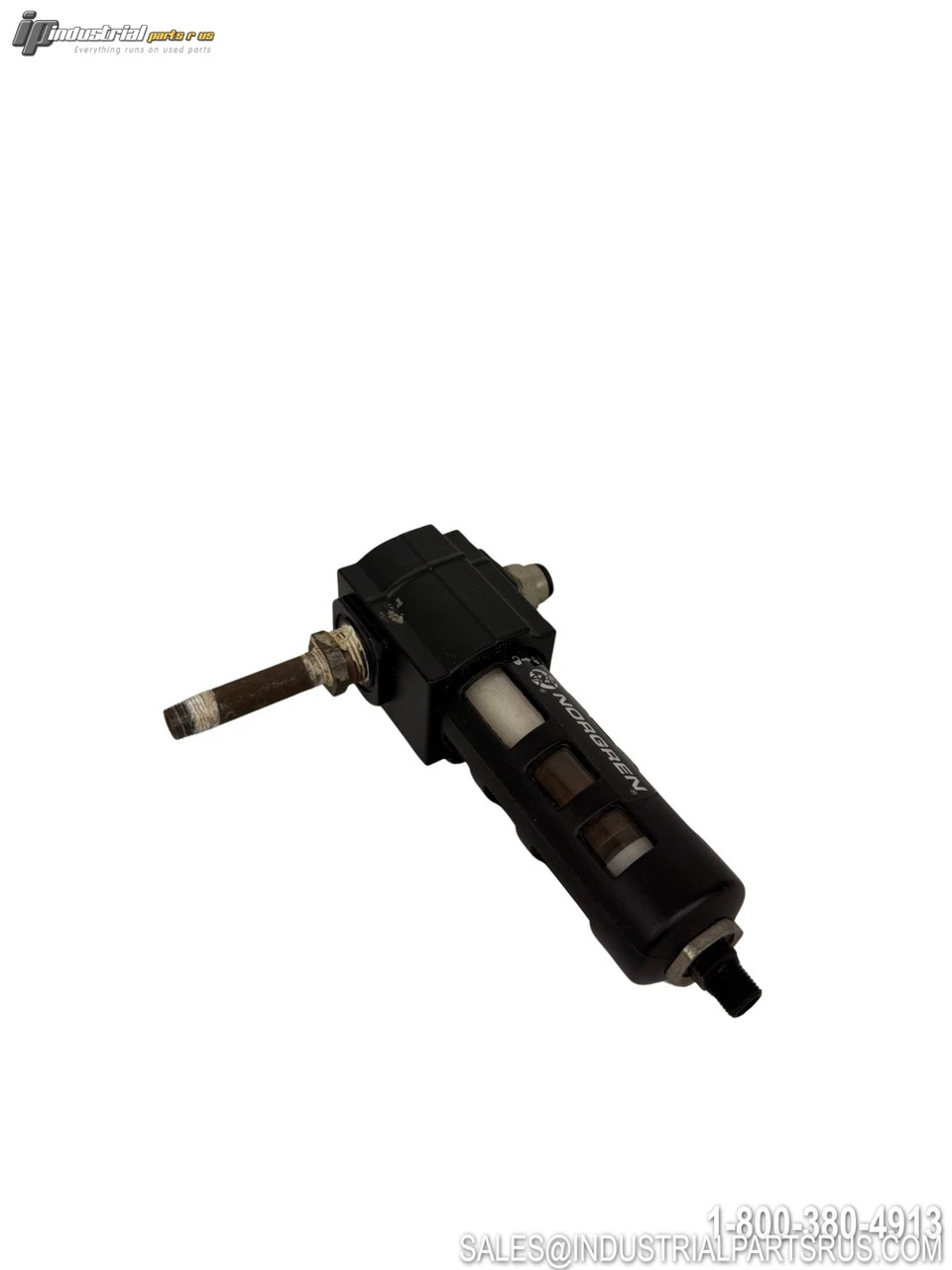

USED NORGREN EXCELON F72G-3AS-001

The Norgren Excelon F72G-3AS-001 is a general purpose compressed air filter designed for use as a standalone in-line unit or as part of Norgren's Excelon modular compressed air preparation system. Featuring a 3/8" NPT port, a polycarbonate bowl with metal guard, and a maximum operating pressure of 150 PSIG (10 bar), this filter efficiently removes water and particulate contamination from compressed air lines. Note: This part number has been discontinued by the manufacturer.
Specification
Value
Brand
Norgren Excelon
Model / Part Number
F72G-3AS-001
Product Type
General Purpose Pneumatic Air Filter
Series
Excelon 72 (F72G)
Port Size
3/8 in NPT
Thread Type
NPT (American)
Maximum Operating Pressure
150 PSIG (10 bar)
Maximum Operating Temperature
125°F (50°C)
Minimum Operating Temperature
-30°F (-34°C)
Flow Rate
40 SCFM
Filtration Element Rating
40 µm (standard)
Element Material
Sintered Polypropylene
Bowl Type
Short Polycarbonate Bowl with Metal Guard
Bowl Material
Polycarbonate (PC)
Body Material
Zinc
Elastomers
Neoprene (CR) and Nitrile (NBR)
Drain Type
Manual / Semi-Automatic
Bowl Release
Quick Release Bayonet
Modular System
Norgren Excelon Modular System (Quikclamp compatible)
Fluid
Compressed Air
Weight
1.10 lbs
Status
Discontinued by Manufacturer
We warranty all items for 30 days from date of purchase.
