USED GENERAL INTERNATIONAL 75-260M1 FLOOR DRILL PRESS

Manufacturer: General International
Model: 75-260M1
Condition: Used – Good Operating Condition
Machine Type: Floor Standing Drill Press
The General International 75-260M1 is a heavy-duty floor standing drill press designed for precision drilling in woodworking, cabinet manufacturing, millwork, maintenance, and general fabrication applications.

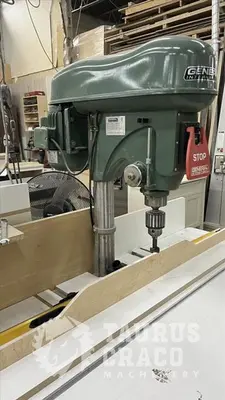

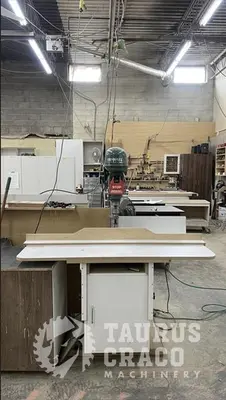

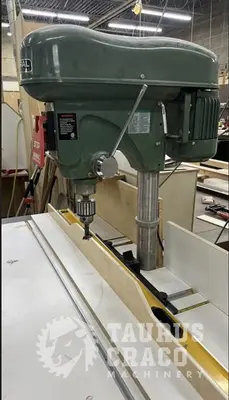

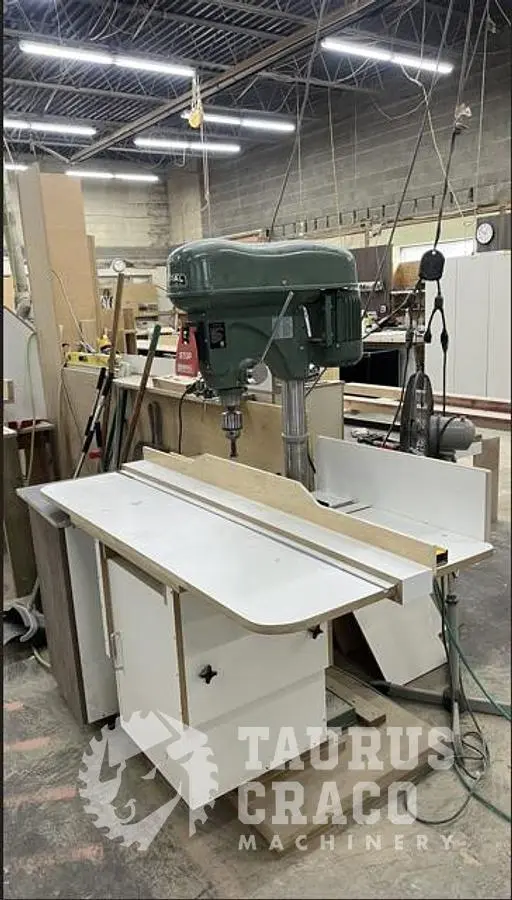

This machine is mounted in a custom workstation configuration complete with an integrated work surface and fence system, making it particularly well suited for repetitive drilling operations and production environments where accuracy and consistency are important.
The machine remains in good operating condition and has been used in a professional woodworking environment.
Heavy-duty floor standing drill press
Custom workstation setup
Integrated fence system
Large cast iron head and column construction
Precision depth stop
Large front-mounted safety stop switch
Adjustable work table
Suitable for production and custom work
Single-phase power
Swing Capacity: 17"
Chuck Capacity: 3/4"
Spindle Travel: 6"
12-Speed Configuration
Approximate spindle speeds:
255 – 2750 RPM
1 HP
Voltage: 110V / 220V
Phase: 1 Phase
Frequency: 60 Hz
Heavy-duty cast iron construction
Floor-mounted industrial design
Precision spindle assembly
Mechanical depth-stop system
Industrial-duty column and base
Used – Good Operating Condition
The machine remains fully operational and has been maintained in a professional shop environment. The custom workstation and fence system provide additional functionality for production-oriented drilling applications.
The General International 75-260M1 offers the durability and drilling capacity expected from a professional floor standing drill press while benefiting from a custom workstation setup designed for efficient production work. With a 1 HP motor, 17" swing capacity, 6" spindle travel, and 12-speed operation, this machine is well suited for woodworking shops, cabinet manufacturers, and general production environments seeking reliable drilling performance.
