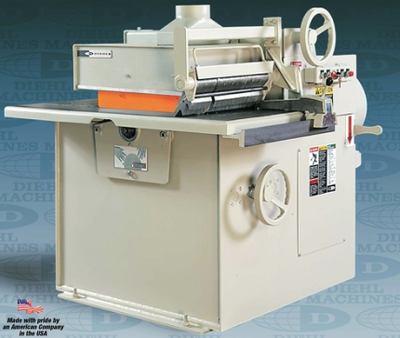

NEW DIEHL MR-90

Diehl Model MR-90
Specifications
Various Motor HP Available
Feed Motor: 2 HP
Feed Speeds Available from 50-150 FPM
Minimum Thickness: 1/4" (6mm)
Maximum Thickness: 2.5" (38mm)
Minimum Length: 12" (305mm) Std. Optional 8" (203mm) available
Maximum Cutting Width: 12" (305mm)
Saw Blade Dimensions: 12" with 2 3/4" hole for sleeve with 5/16" keyway
Feed Rolls: 4" dia. on 5" centers, spur feed rolls 5" dia
Arbor drive Direct motor driven with flexible coupling and manual arbor brake
Standard with four upper powered corrugated feed rolls and two lower non-driven bed rolls providing a dependable and positive feed system
Outboard bearing for the saw arbor
Pivoting side guard mounted on the feed roll housing
Upper and lower anti-kick back fingers and a manually activated arbor brake
Optional
Center feed roll can be added for ripping short length stock
