USED COE CPR-DE-PO-15030, CPPS-PO-300-30, CPTT-30-10

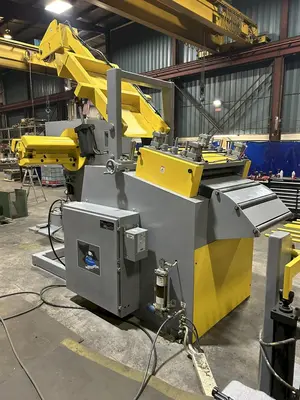

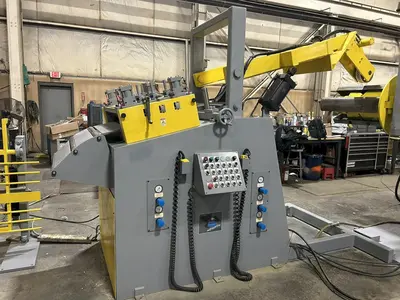

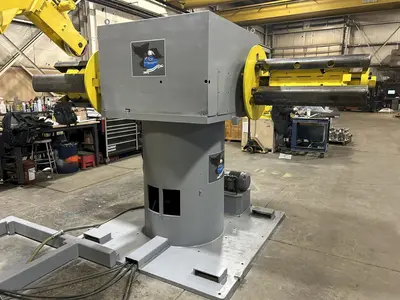

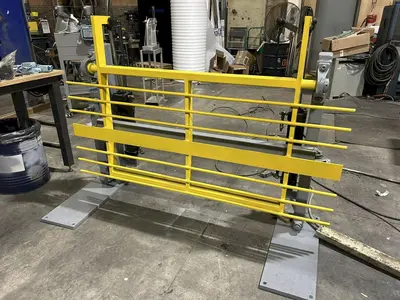

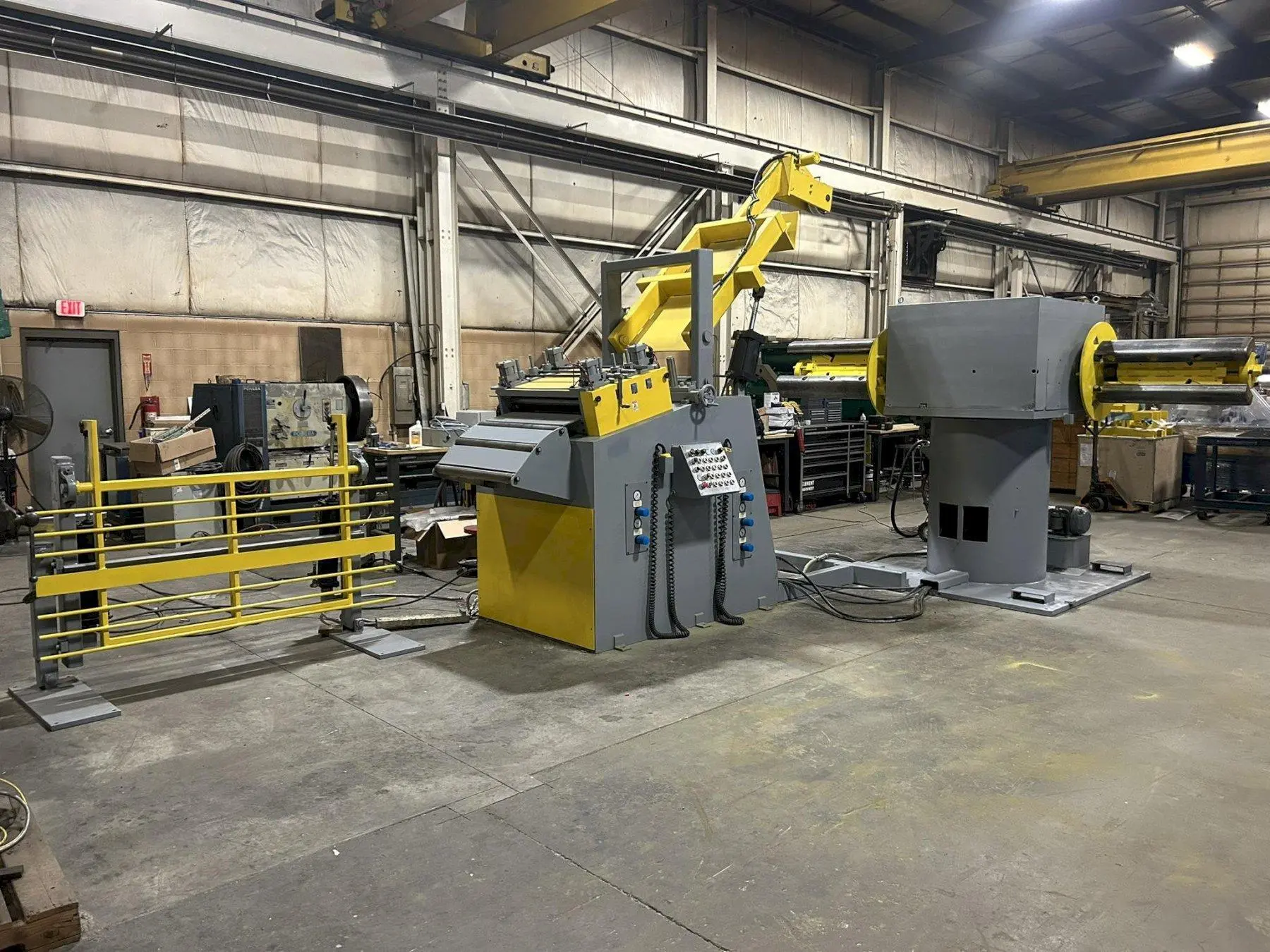

Consisting of the following:Coe Double-End Coil Reel Uncoiler Model No. CPR-DE-PO-15030Coe Powered Coil Straightener Model No. CPPS-PO-300-30Coe Press Equipment Single-Side Thread Table Model No. CPTT-30-10Maximum Coil Capacity: 15,000 lbsMaximum Coil Width: 30”Material Thickness at Full Width: 0.090” @ 30” WideMaximum Material Thickness: 0.125” @ 18” WideMaterial: Mild Steel Only – 40 KSI Maximum YieldFeed Direction: Right to LeftPower: 480V, 3-Phase, 60 HzSerial Number: 11470Coe Press Equipment Double-End Coil Reel Uncoiler Model No. CPR-DE-PO-15030Double-End Reel20-24” I.D. Expansion Range72” Maximum Coil O.D.Three-Leaf Mandrel Pad AssemblyHydraulic Coil Reel Mandrel ExpansionHydraulic Mandrel Indexing with Locking PinHydraulic Threading DriveAir Brake with Pressure RegulatorsJog, Forward and ReverseRemote Reel Jog Pendant Jog with Coil CordHydraulic Controls Solenoid OperatedManual-Bypass Foot Pedal Release for Mandrel LocationFull Set of Adjustable Coil Reel Keeper ArmsCoe Press Equipment Powered Coil Straightener Model No. CPPS-PO-300-304-Position Stock PeelerPeeler, Threader, Hold Down Station with Motorized End WheelEntry Stock Width Edge Guides with Self-CenteringEntry and Exit Powered Coil Straightener Pinch RollsAir-Operated Entry Upper Powered Coil Straightener Pinch Roll AdjustmentAir-Operated Exit Upper Powered Coil Straightener Pinch Roll AdjustmentSeven (7) Coil Straightening Rolls, 3” O.D.3-Over-4 Configuration with First/Last Lower Rolls Doubling as Pinch RollsIndividual Upper Coil Straightening Roll AdjustmentsAutomatic Grease Lube SystemHand Held Pendant Control for Jog Forward and ReverseNew 10 HP VFD Variable Speed Powered Coil Straightener Drive SystemExit Cascade Loop Support RollersNew Ultrasonic Loop Control SystemCoe Press Equipment Single-Side Thread Table Model No. CPTT-30-1010ft Long Threading Table30” Wide, Single SideBomb Bay StyleAir Raise and Lower with Limit Switch IntegrationOPTIONAL New Coe Press Equipment Servo Roll Feed No. CPRF-S3303” O.D. Upper and Lower Servo Feed RollsAir-Operated Upper Servo Feed Roll Lift and Pilot ReleaseAdjustable Stock Width Edge Guides with Self-CenteringEntry Cascade Loop Support RollersFree-Standing Cabinet Base with Adjustable Pass Line HeightPassline: TBD (Standard 49” Pass Height +/- 5”) - AC Servo Roll Feed Drive and ControlsJob Memory Micro Adjust Batch CountNew Free-Standing Sloped Front Servo Roll Feed Control ConsoleRemote Pendant Control for Jog Forward and ReverseFeed Angle: 180 and 240 DegreesMaximum Speed: 367 FPMMaximum Acceleration: 55 FPS
