USED 2013 CERTIFIED COMPARATOR PRODUCTS CC-16, 2013, Q-CHEK DRO & PROJECTRON EDGE DET.

14" CERTIFIED COMPARATOR PRODUCTS "MADE IN USA"

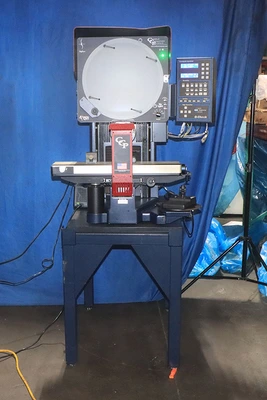

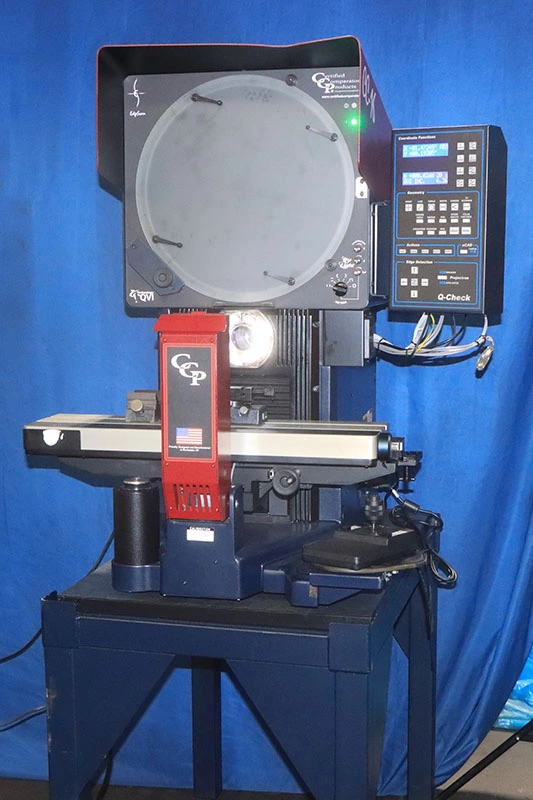

 BENCH MODEL OPTICAL COMPARATOR (CORRECT IMAGE)

     WITH "TRULIGHT" ALL-LED ILLUMINATION

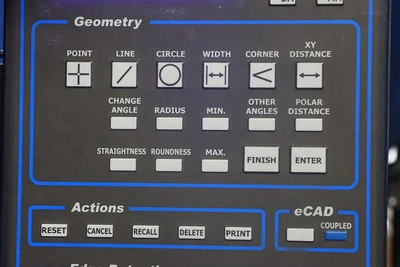

      CCP "Q-CHECK" DIGITAL READOUT,

 WITH PROGRAMMABLE GEOMETRIC FUNCTIONS

AND "PROJECTRON" INTERNAL AUTO EDGE DETECTION

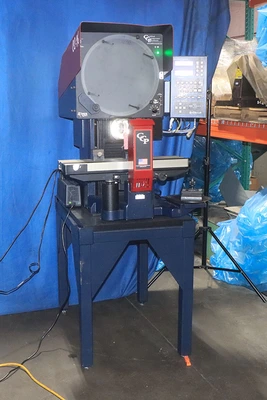

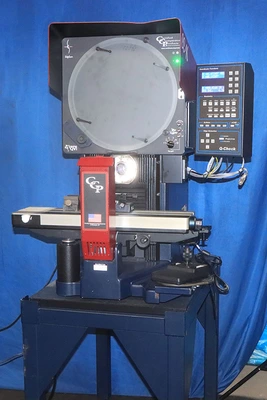

MODEL: CC-16   S/N: CCP1601073   NEW: AUG. 21, 2013

SPECIFICATIONS:

SCREEN DIAMETER: ............... 16"

SIZE OF MEASURING TABLE: ....... 20" x 4.75"

MEASURING CAPACITY

- LONGITUDINAL TABLE TRAVEL: ... 15" (X)

- VERTICAL TABLE TRAVEL: ....... 6" (Y)

- FOCUS TRAVEL ................. 2" (Z)

CONSTANT WORKING CLEARANCE ..... 3.9"

THROAT CLEARANCE ............... 10.75"

WORKTABLE HELIX MOTION ......... +/- 7.5°

ANGULAR MEASURING CAPACITY: .... 360° CHART ROTATION

THROAT CLEARANCE: .............. 9.8"

LOAD CAPACITY ON TABLE: ........ 45 LBS.

APPROX. DIMENSIONS: ...... 37.7" L-R x 31.9" F-B x 41"H

MACHNE WEIGHT (MOTORIZED: ...... 495 LBS. APPROX

EQUIPPED WITH:

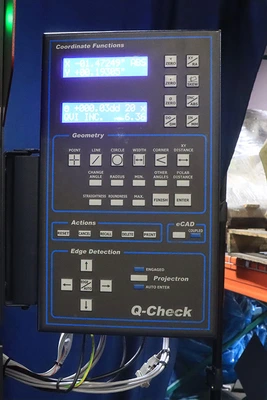

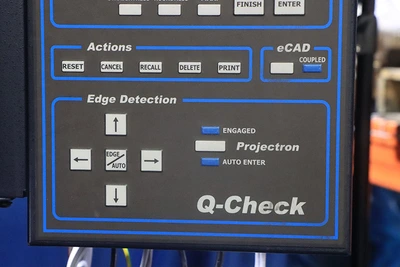

"CERTIFIED COMPARATOR PRODUCTS "QVI" "Q-CHECK"

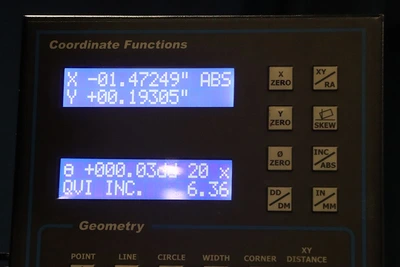

  3-AXIS DIGITAL READOUT SYSTEM,  X, Y & Q AXES,

  WITH PROGRAMMABLE GEOMETRIC FUNCTIONS AND

  "PROJECTRON" INTERNAL OPTICAL EDGE DETECTION.

ADVANCED DIGITAL MEASURING TOOL - "Ecad":

  PROJECTS AN ACCURATELY MAGNIFIED CAD MODEL

  DIRECTLY ONTO THE COMPARATOR SCREEN PRESENTING A

  VIRTUAL CHART GAGE, WHICH INCLUDES NOMINAL

  DIMENSIONS AND TOLLERANCES.  Ecad ELIMINATES

  THE NEED TO PRODUCE AND MAINTAIN AN INVENTORY

  OF SPECIALIZED CHART OVERLAYS.

DIGITAL DISPLAY OF ROTARY SCREEN PROTRACTOR, 1' VERNIER,

 THIS IS THE "Q" AXIS ON THE DRO.

XY SCALE RESOLUTION 0.000040" (1um)

ALL-LED LIGHTING, "TRULIGHT" (SEE BELOW FOR ADDITIONAL

 DESCRIPTION OF THIS OPTION THAT OUR MACHINE HAS)

HELIX STAGE MOTION, TABLE SWIVELS

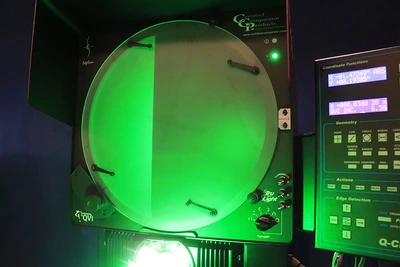

THRU THE LENS SURFACE ILLUMINATION

TELECENTRIC LENSES - UPRIGHT & REVERSED IMAGE.

MOTORIZED STAGE TRAVEL, WITH JOYSTICK CONTROL

TABLE TRAVELS CAN ALSO BE DONE MANUALLY

UNUSUAL FEATURE - 15" LONGITUDINAL TABLE TRAVEL

AN ULTRA-STABLE COMPOSITE BASE

RIGID, ALL-STEEL CONSTRUCTION

DUAL MIRROR OPTICS PRODUCING AN UPRIGHT AND REVERSED


HELIX MOTION - PIVOTING WORKTABLE WITH +/- 6.5° MOTION

MANUAL LENS TURRET

OUR MACHINE COMES WITH BOTH 10X AND 20X LENSES

"VEE-BLOCK" ACCESSORY, ON TABLE

FACTORY FLOOR STAND

ELECTRICAL 1/60/115 VOLTS AC

"TRULIGHT ALL-LED LIGHTING:

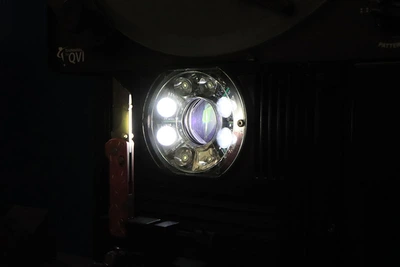

OBLIQUE 9DARK FIELD) RING LIGHT WITH 8 WHITE LED's,

6 SWITCH-SELECTABLE PATTERNS FOR EFFECTIVE DIRECTIONAL

 LIGHTING; CONTINOUSLY VARIABLE INTENSITY.

THROUGH-THE-LENS COAXIAL SURFACE LIGHT, WHITE BRIGHTFIELD,

 LED, CONTINOUSLY VARIABLE LIGHT.

1. Profile light, bright green LED, continuously

   variable intensity

2. Oblique (Dark Field), Ringlight with 8 white LEDs,

   6 switch-selectable patterns for effective

   directional lighting; continuously variable

   intensity

3. TTL surface, white brightfield, LED coaxial internal,

   continuously variable intensity

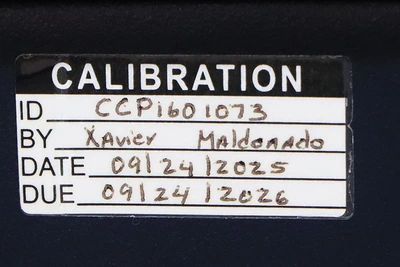

CALIBRATED LAST BY:

MR. XAVIER MALDANADO

DATE:  09/24/2025

** WOW!  EXCEPTIONAL CONDITION & APPEARANCE **

** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **

FOR MORE INFORMATION: Call Andy at 973-497-7600
