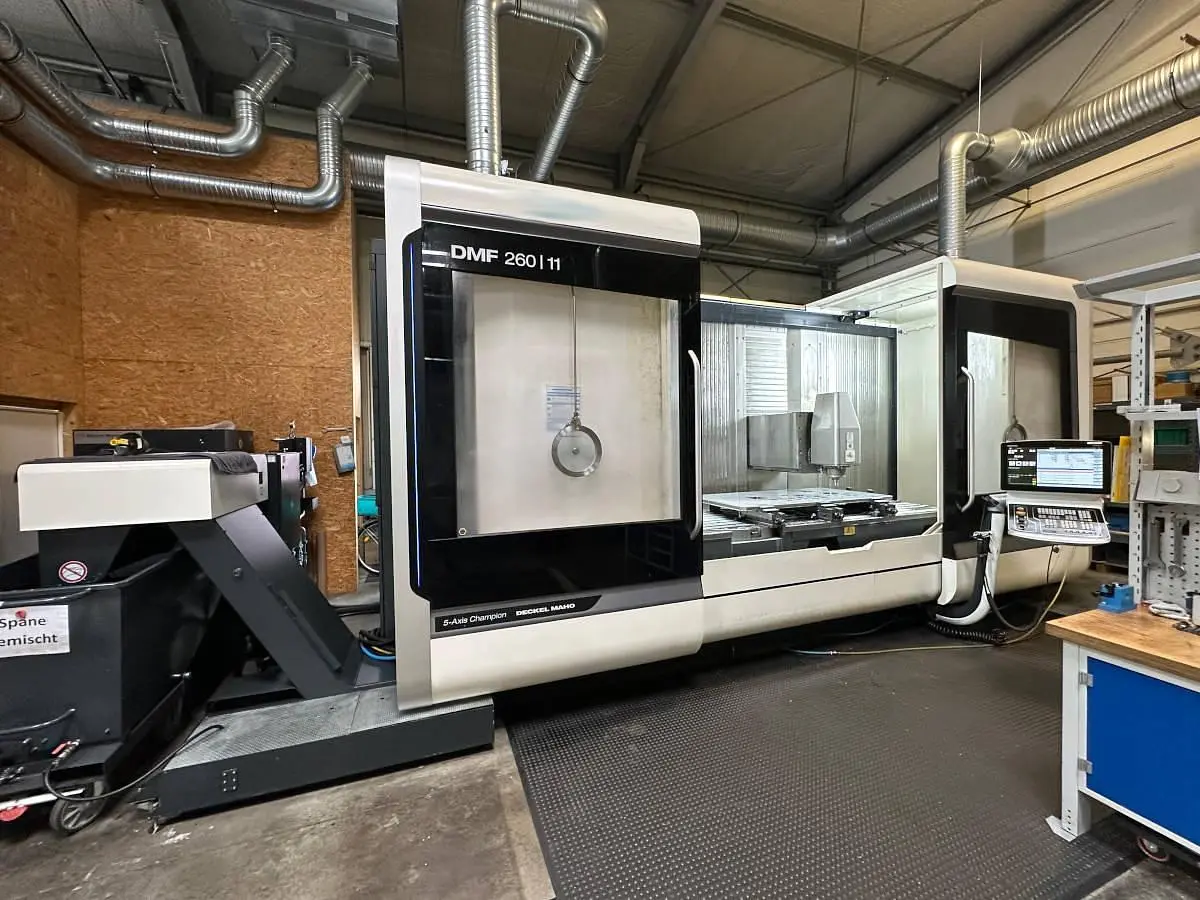

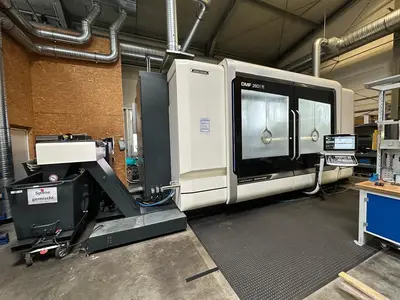

USED 2022 DMG DMF 260/11

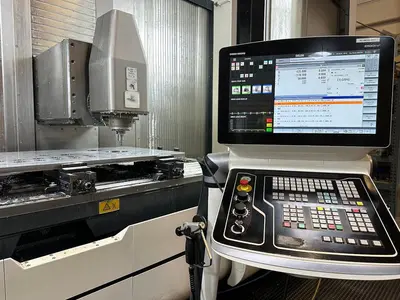

Siemens 840 DSL - Celos CNC Control
12 Position Autoamtic Tool Changer - Double Gripper with ATC Shuttle
Max Tool Diameter 130 mm
Max Tool Length 300 mm
Position measurement systems - Direct on all axes (glass scales)

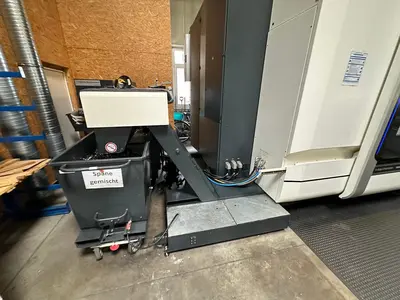

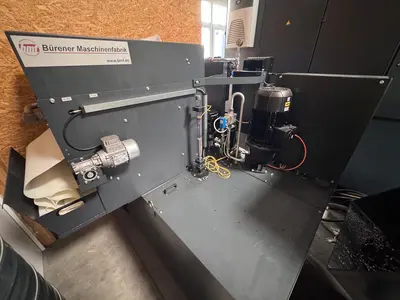

Chip conveyor

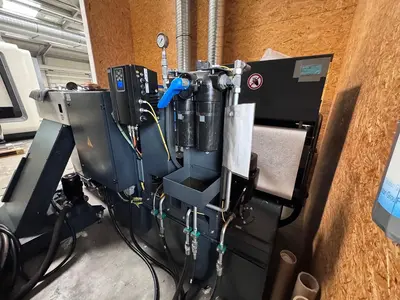

Coolant supply - CTS system, 80 bar

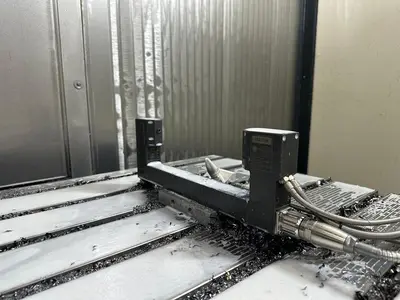

Tool measurement - BLUM laser
Workpiece measurement - Heidenhain TS 460
Kinematics measurement - 3D quickSET ready
Emulsion mist separators - 2 units, mechanical
Process monitoring - Operating mode 4
Set-up mode - Electronic handwheel

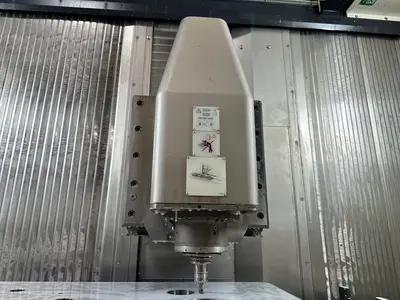

Spindle:
Technology - Direct drive spindle
Speed - 20,000 rpm
Max. power - 35 kW
Max. torque - 120 Nm
Tool holder - SK 40

NC swivel head:
Technology - Swivel axis (B-axis)
Travel range - +/- 100°

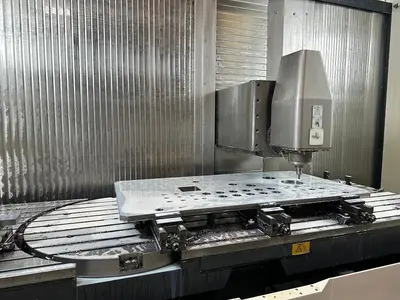

Work table:
Technology - Fixed table with integrated NC rotary table
Total clamping area - 3,200 x 1,100 mm
Total table load capacity - 4,000 kg/m
Clamping area of NC rotary table - 1,050 mm
Max. table load capacity of NC rotary table - 1,200 kg/m
C-axis - 360°
