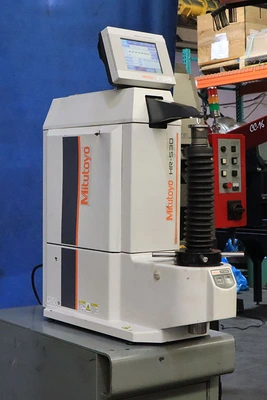

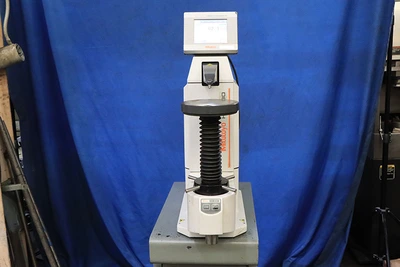

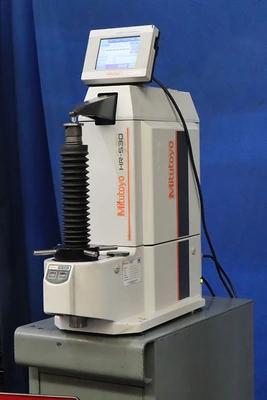

USED 2024 Mitutoyo HR-530, 810-237, 2024 DIGITAL ROCKWELL/SUPERFICIAL

Mitutoyo HR-530 (810-237)

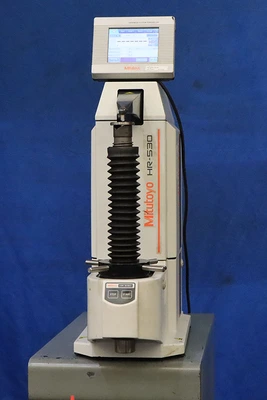

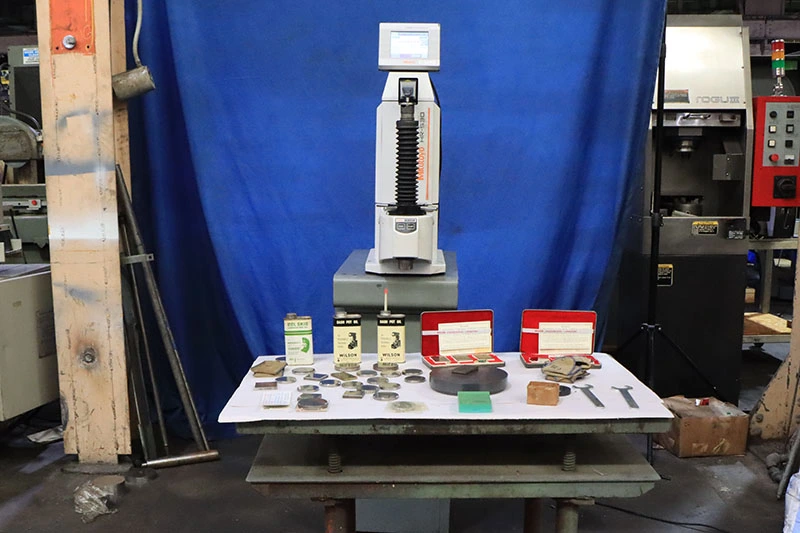

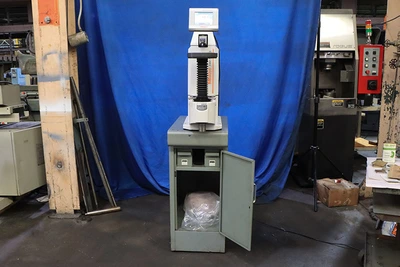

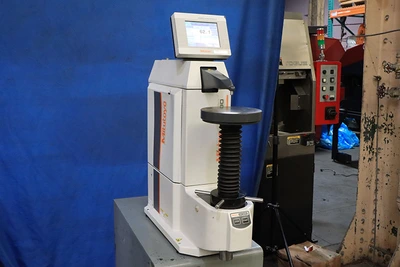

Mitutoyo Rockwell Hardness Testing Machine HR-530

 Series Unique electronic control makes the HR-530

 series of hardness testers capable of Rockwell,

 Rockwell Superficial, Rockwell testing of plastics

 (A & B) and Light Force Brinell hardness testing.

S/N:  000061712   New: 2024

https://www2.mitutoyo.co.jp/eng/support/service/catalog/06/E17009.pdf

The closed loop test force control on the Mitutoyo

 HR-530 Rockwell and Brinell Hardness Tester allows

 for a wide variety of hardness testing including plastics.

The HR-530 is capable of testing the inside wall hardness

 of rings without cutting the ring into pieces.

 An easy to use brake-start system automatically begins

 testing when initial force is reached.

Maximum specimen size:

Height 250 mm (9.8"), Depth 150 mm (6")

Unique electronic control makes the HR-530 series

 of hardness testers capable of Rockwell, Rockwell

 Superficial, Rockwell testing of plastics (A & B)

 and Light Force Brinell hardness testing.

The new HR530 and HR530L Rockwell and Superficial

 hardness testers include a color touch-screen controller.

 Four display types are available, as well as enhanced

 statistical graphing. ASTM D785 Part A and B now

 can be performed. The new HR530 includes common

 Light Force Brinell testing forces from 6.25 to 187.5kgf.

 All scales are shown on a single screen for ease of use.

Features:

Inside ring hardness testing

Test the hardness of the inside wall of a ring without

cutting the ring into pieces. (All models.)   Minimum

 diameter is 34 mm, but inside diameters as small

 as 22 mm can be tested by using the optional

 5 mm diamond indenter (19BAA292).

Display with color touch-screen

The HM and HV series user interface has been adapted

 to include Rockwell hardness testing capabilities.

 Versatile color screens display the results of

 statistical calculations and graphics functions, etc.

When space restrictions are an issue, the touch-panel

 display unit can be mounted on top of the tester.

Graphic display of statistical calculation

 results and X?-R control charts

This series allows numeric display of statistical analysis

 results such as maximum and minimum values, mean

 value and graphic display of X? -R control charts

 and histograms required for hardness evaluation.

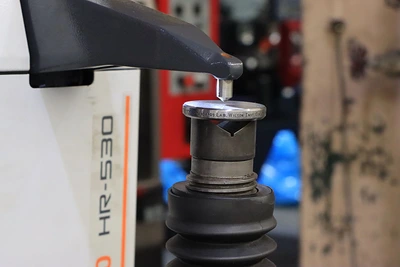

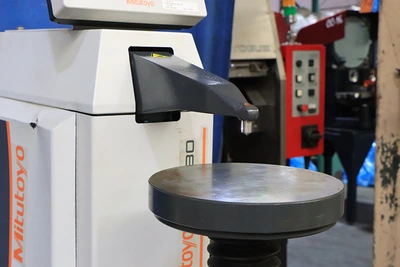

Measurement with a nose indenter shaft

A nose-type indenter enables measurement not only

 of the flat top surface of a specimen, but also the

 inside surface of a cylindrical specimen.

Continuous measurement function

When testing multiple workpieces with the same height,

 continuous testing is possible by pressing the foot

switch or the START button.

RS-232C, Digimatic and USB interface ports

Initial Test Force:  <29.42, 98.07 N / 10, 3 kgf

Test Methods:Rockwell, Superficial and Light Force Brinell

Brinell Force Range:  61.29, 98.07, 153.2, 245.2, 294.2,

 306.5, 612.9, 980.7, 1226, 1839 N / 10, 100, 125, 15.625,

 187.5, 25, 30, 31.25, 6.25, 62.5 kgf

Rockwell Force Range:  588.4, 980.7, 1471 N / 60, 100, 150 kgf

Superficial Force Range:  147.1, 294.2, 441.3 N / 15, 30, 45 kgf

Test Force Control:  Automatic

Table Up/Down Mechanism:  Manual

Control Unit:  Color Touch-Pane

lTest Force Switching:  Operated with Display Unit

Test Force Hold Time:  1 – 120 sec

Max Sample Depth:  5.9″ / 150mm

Inside Diameter of Tube:  .87, 1.38″ / 22, 35mm

Max Table Loading:  45lbs / 20kg

Ball Indenter:  Tungsten Carbide Ball

Display:  Color LCD Touch Screen

Language:  Japanese, English, German, French, Italian,

 Spanish, Korean, Simplified Chinese, Turkish, Portuguese,

 Hungarian, Polish, Dutch and Czech

Data output: RS-232C, SPC, USB2.0

Power Supply:  AC120V

In Stock, Harrison NJ

Like New

FOR MORE INFORMATION: Call Andy at 973-497-7600
