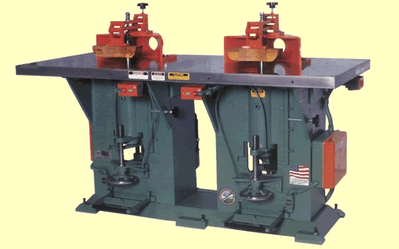

Northfield Large Top Double Spindle Shaper

General Information:
Double Spindle Shapers are constructed with rugged iron castings and balanced rotating components to assure vibration free performance
The 42" x 84" table provides room for mounting feeders and gives full support for large jigs and fixtures
Spindles are available to 1-1/2" diameter and up to 8" in length
Under table dust outlet improves dust & chip extraction
Guards, aluminum dust spouts & hand brakes are standard equipment
General Specification:
Diameter of Spindle (standard machine): 1"
Vertical Adjustment of Spindle: 4-1/2"
Length of Spindle at Collar: 5"
Size of Table: 42" x 84"
Distance Between Spindles: 42"
Height of Table Top: 34-1/2"
Spindle Speed: 8,000 RPM
Spindle Rotation (Front of Machine)
RH Spindle: Counterclockwise
LH Spindle: Clockwise
Size of Dust Spout: 4" - 4" dust spout requires approx. 400 CFM air flow for dust collection
Size of Throat Hole: 4-1/2"
Additional Options:
K-50 fence with hold down springs
Micrometer adjust for K-50 fence
3/4, 7/8, 1-1/8, 1-1/4, 1-3/8, 1-1/2 solid spindles
6-1/2" spindle length 1, 1-1/8, 1-1/4 solid spindle only
8" spindle length 1-3/8, & 1-1/2 solid spindle
Opposite spindle rotation RH, CW, LH, CCW
Reversing solid spindle with reversing switch
Detachable non-reversing spindle screw-on type: 3/4, 7/8, 1, 1-1/8, 1-1/4"
Detachable reversing spindle taper type: 3/4, 7/8, 1, 1-1/8"
Detachable router top: 1/2" hole
Collet spindle: (3/4" max. collet bore)
6000 & 4000 RPM spindle speed
NEMA 12 electrics with fused disconnect
24-volt push-button
Hand brake in lieu of foot brake
Switch to disconnect power upon actuation of brake
Miter gauge with dovetail slot
Throat hole and plates available: 8", 6-1/2" and nested
Modifications to customer's order
