General Information:

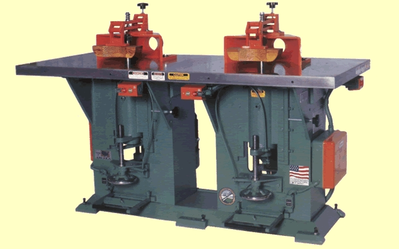

Double Spindle Shapers are constructed with rugged iron castings and balanced rotating components to assure vibration free performance
Available with either 24" or 30" between spindle centers
Spindles are available to 1-1/2" diameter and up to 8" in length
Under table dust outlet improves dust & chip extraction
Guards, aluminum dust spouts & hand brakes are standard equipment
General Specification:
Diameter of Spindle (standard machine): 1"
Vertical Adjustment of Spindle: 4-1/2"
Length of Spindle at Collar: 5"
Size of Table: 24" center machine -30" x 60"
30" center machine - 30" x 66"
Distance Between Spindles: 24" Std. or 30"
Height of Table Top: 34-1/2"
Spindle Speed: 8,000 RPM
Spindle Rotation: RH Spindle Counterclockwise, LH Spindle Clockwise
Size of Dust Spout: 4" - 4" dust spout requires approx. 400 CFM air flow for dust collection
Horsepower: 3, 5, 7-1/2, 10, 15 TEFC
Size of Throat Hole (Standard Machine): 4-1/2"
Additional Options:
K-50 fence with hold down springs
Micrometer adjust for K-50 fence
3/4, 7/8, 1-1/8, 1-1/4, 1-3/8, 1-1/2 solid spindles
6-1/2" spindle length 1, 1-1/8, 1-1/4 solid spindle only
8" spindle length 1-3/8, & 1-1/2 solid spindle
6" front and rear table extensions
Detachable router top 1/2" hole
6000 & 4000 RPM spindle speed
NEMA 12 electrics with fused disconnect
24-volt push-button
Hand brake in lieu of foot brake
Switch to disconnect power upon actuation of brake
Miter gauge and dovetail slot (table ends only)
Clockwise spindle rotation
Miter gauge with dovetail slot
Throat hole and plates available: 8", 6-1/2" and nested
Modifications to customer's order
