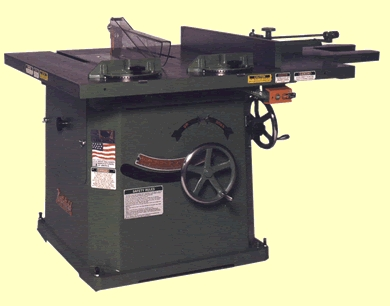

Northfield #4 Standard Saw

Northfield #4 Standard Saw
General Information:
Northfield Tilting Arbor Variety Saws are available in four different models, each of which is designed for a variety of uses
Each model can accommodate saw blades from 14" to 18"
The saw arbor can be tilted from 0 degrees to 45 degrees through a conveniently located hand wheel
A vertical saw adjustment of 4" is standard
Each Machine is Electronically Balanced
All tables, whether stationary or rolling, are carefully seasoned, heavily ribbed and precision planed and polished to maintain accuracy
A graduated scale is marked on the top for ripping widths.
Dovetailed slots are provided for the sliding gauges
An adjustable rack and pinion type rip fence is furnished
Saw Capacity:
14" Saw Projects: 3"
14" Saw Projects of 45 degree Tilt#: 2-1/4"
16" Saw Projects: 4"
16" Saw Projects of 45 degree Tilt#:3"
18" Saw Projects: 5"
18" Saw Projects of 45 degree Tilt#: 3-5/8"
Saw Arbor Tilts: 0 degrees to 45 degrees
Arbor Speed (RPM): 3600
Standard Arbor Diameter: 1-1/8"
Stationary Table Size: 36" x 44"
Rip Capacity with Standard Rack & Pinion Type Fence: 32"
Crosscut Capacity: 32"
Additional Options:
Optional Arbor Diameter1", 1-1/4"
12", 24" & 36" Cast Iron Table Extensions
Micrometer Adjust on R & P Fence
Tilting R & P Fence
4" Screw-on Dado Extensions
Detachable Arbor Motor
Detachable Arbor Ends
Dado Throat Plate
Stock Stops for Miter Gauges
Thin Dado Collar 13/16" Dado Capacity on Std. Arbor.
