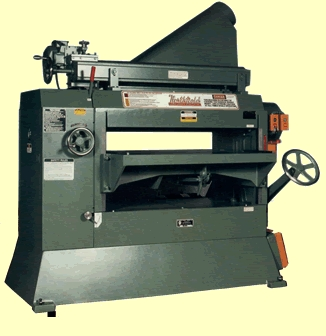

Northfield No. 737 37" Planer Surfacer

Northfield No. 737 37" Planer Surfacer
General Specification:
Nominal Size: 37" x 8"---36" x 8" Helical Head
Actual Capacity: 37" x 8-3/4"---36" x 8-3/4" Helical Head
Cylinder: 5" cutting circle, 4 knife, high carbon steel, micrometer-type knife raising screws
Knife Size: 5/32" x 1-1/4" x 37" high speed steel
Drive: VEE-belt 3 VX belts
Brake: Conveniently located hand brake
Motors: Cutterhead---10, 15, 20, 25 or 30 HP
Feed---2 HP totally enclosed fan cooled
Voltage: 208-220/440, 550 volt 60 cycle, 3 phrase std
RPM: VEE-belt---3600 (or customer's specifications)
Lower Feed Rolls: 4" solid steel, power driven, sealed-for-life bearings
Upper Feed Rolls:
INFEED: 4" diameter, 2" milled ductile iron sections, 5/16" section yield, 3/4" roll yield, sealed-for-life ball bearings
OUTFEED: 4" solid steel, power driven, sealed-for-life ball bearings
Maximum Stock Width: 37"---36" Helical Head
Shortest Butted Piece: 4"
Shortest Single Piece: 12"
Maximum Stock Thickness: 8-3/4"
Maximum Depth of Cut: 3/8"
Adjustment: Single hand lever .001" to .075"
Feed Speed: 20 to 100 lineal feet per minute (higher or lower available in same ratio)
Chipbreaker: Ductile iron, 2" sections, concentric with head
Pressure Bar
Controls: Double magnetic switch, single pushbutton, reversing switch on feed mechanism
Additional Options:
Shavings hood for connection to blower system
Knife grinder and jointing attachment
Idler rollers for edge of table
Dial type knife and roll setting gauge
Limit switch for hand brake
NEMA 12 electrics
Powerlift table
Hard chrome plated pressure bar
Digital readout
3 HP feed motor
Smooth sectional out feed roll
Higher or lower feed speeds
Modifications to customer's orders
