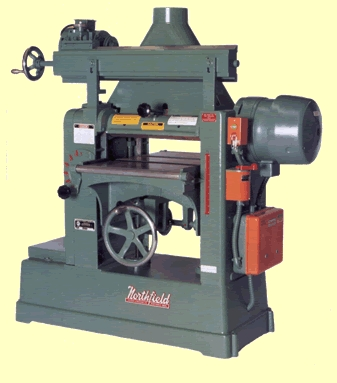

Northfield No.2 18" Planer Surfacer

Northfield Model No.2 18" Planer Surfacer
General Specifications:
Nominal Size: 18" x 8"
Cylinder: 3-1/2" cutting circle, 4 knife, high carbon steel, micrometer-type knife raising screws
Knife Size: 5/32" x 1-1/8" x 18-1/8" high speed steel
Motors Cutterhead---5, 7-1/2, HP
RPM Direct Motor Drive---3600 VEE-belt---4500 (or customer's specifications)
Lower Feed Rolls: 2-13/16" sealed-for-life bearings
Indeed: 2-1/2" diameter, corrugated solid steel, power driven, sealed-for-life ball bearings
Outfeed: 2-1/2" solid steel, power driven, sealed-for-life ball bearings
Maximum Stock Width: 18"
Shortest Butted Piece: 4"
Shortest Single Piece: 7-1/2"
Maximum Stock Thickness: 8"
Minimum Stock Thickness: 1/8"
Maximum Depth of Cut: 1/4"
Feed Speed: 20 to 50 lineal feet per minute (higher or lower available in same ratio)
Controls: Double magnetic switch, single pushbutton
Additional Options:
Shavings hood for connection to blower system
Knife grinder and jointing attachment
Knurled infeed roll
Rubber sectional infeed roll
Modifications to customer's orders
