Ultimizers 18U-SC7

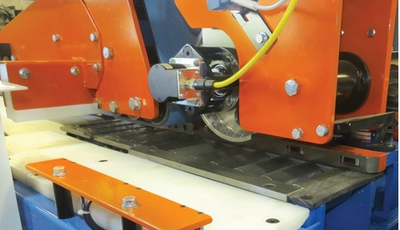

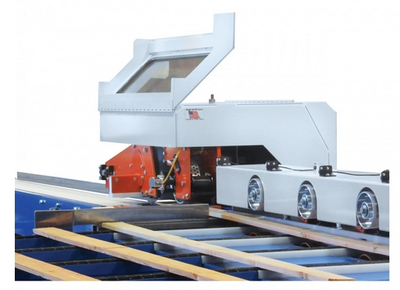

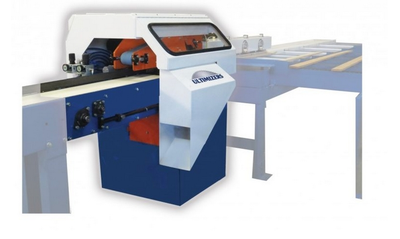

Ultimizers Model 18U-SC7 Cutoff Saw
General Information:
The 18U-SC7 is a high speed, durable and easily maintained cut-off saw
Ramp times to full speed are measured in milliseconds due to the single overhead drive belt and a lower idling roll case that has very little inertia
Cutting cycles as fast as 130 milliseconds increase production
Waste is removed at the blade as it is cut using high pressure air blow-off jets
The patented top conveyor belt provides exceptional grip that resists slippage
The encoder near the blade provides very accurate measurements
The patented top conveyor belt drive is servo driven with a direct gearbox making cut-to-cut moves exceptionally responsive and smooth
An additional servo motor runs the arbor crank actuation up and down
The centrifugal designs remains smooth even at extreme speeds

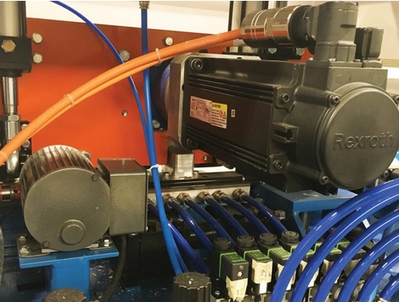

The blade motor is also servo controlled giving the user complete control of blade and cut speeds for optimum cut quality control
Large access panels and Windows based touch screen controls are key to ease of use and operator efficiency
On screen diagnostics cover all sensors, valves and drives
Production graph is based on historical customer use for saw capacity only
Customers actual rates may vary up or down in some cases based on cut speeds, or other system performance rates
