NEW TIMESAVERS YIELDSAVER

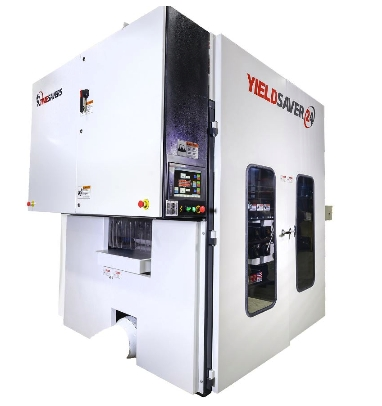

Timesavers Model Yieldsaver 24
Specifications:
Main motors: 75, 75 HP
Maximum width stock: 24"
Minimum part length: 48"
Maximum thickness opening: 5 1/2"
Feed speed: 75-220 FPM
Approximate full load amps at 460 volt: 149
Passline height: 34" Constant
Dust extraction: 7,854 CFM (5" Static Pressure)
Standard Features:
7" Diameter HD Knife Heads
75 & 75 Horsepower Main Drive Motors
Anti-Kickback Assembly
Infeed feed System
Centering Infeed Shoes
Self-Centering Knurled Drive Rolls
Cutter-head Drive System
Outfeed System
Air Operated Disc Brakes
Centralized Control Panel
Main Motor Percentage Load Meter
Hour Meter
Motorized Thickness Adjustment
Feed Speed
U.L. Listed Components
Factory Start-up and Training
