NEW OLIVER 4225.201

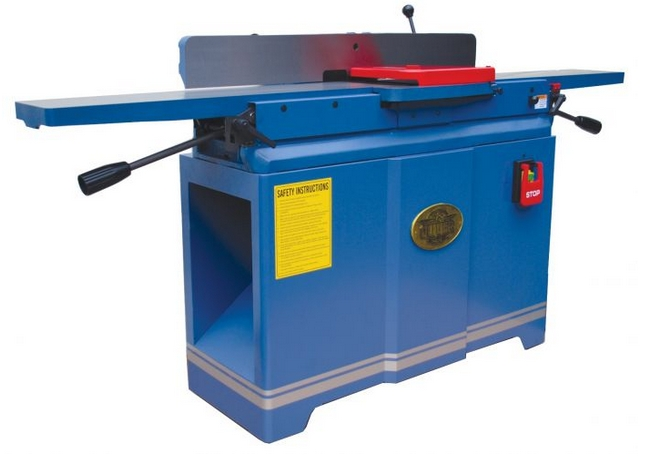

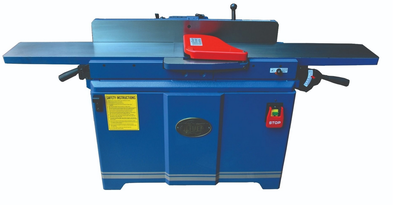

Oliver Model 4225.201 6" Jointer Insert Helical Cutterhead
Specifications:
Single Phase, 1HP motor
Infeed Table Travel: 1/2"
Cutterhead Speed: 5,500 RPM
Number of Knives (helical): 36 Inserts
Maximum Depth of Cut: 1/8"
Rabbeting Capacity: 1/2"
Dust Port Diameter: 4"
Fence Dimensions: 38" x 5"
Fence Tilts: 90°, 45°, 135°
Positive Stops : 90° and 45°
General Features:
Extra-long precision ground tables provide a stable work surface
Parallelogram design provides smooth accurate cuts
Cast iron frame offers stable table support
Fully enclosed cabinet with 4" port for superior dust management
Built-in mobile base with lockable wheels
Cabinet includes push pad storage

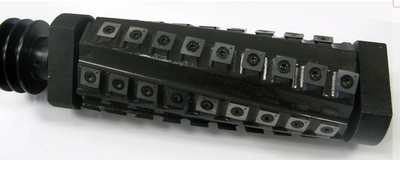

HCX Helical cutter head includes carbide inserts
4-sided cutting inserts are indexed and easy to replace
Lever controlled infeed and outfeed table adjustment allows quick set-up

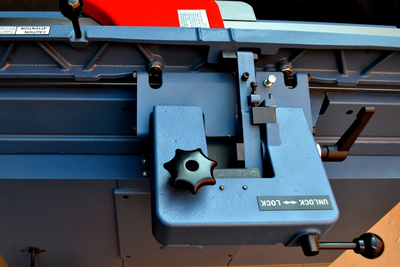

Long precision ground fence tilts up to 135° with positive stops at 45° and 90°
Easy to read depth of cut gauge
Large lockable paddle switch for added safety
Powerful TEFC 1HP single-phase motor
Ploy V-belt drive efficiently delivers power to the cutter head.
CSA Listed
