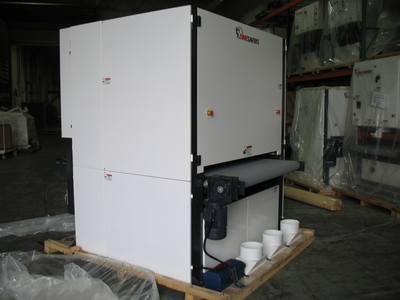

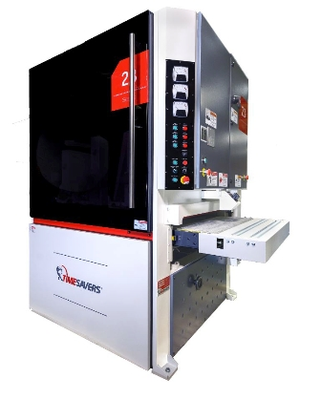

NEW TIMESAVERS 2331-45-001

Timesavers Model 2331-45-001 Three Head 52" Widebelt Sander
Specifications:
Abrasive belt size: 52" x 103"
Main motor: 30 HP, 25 HP & 25 HP
Maximum width stock: 51"
Minimum part length: 15"
Maximum thickness opening: 5"
Indeed Loading Area: 14"
Feed speed: 15-45 FPM
Passline height: 33-38"
Dust extraction: 5480 CFM (5" static pressure)
6 CFM @ 90 psi
Standard Features:

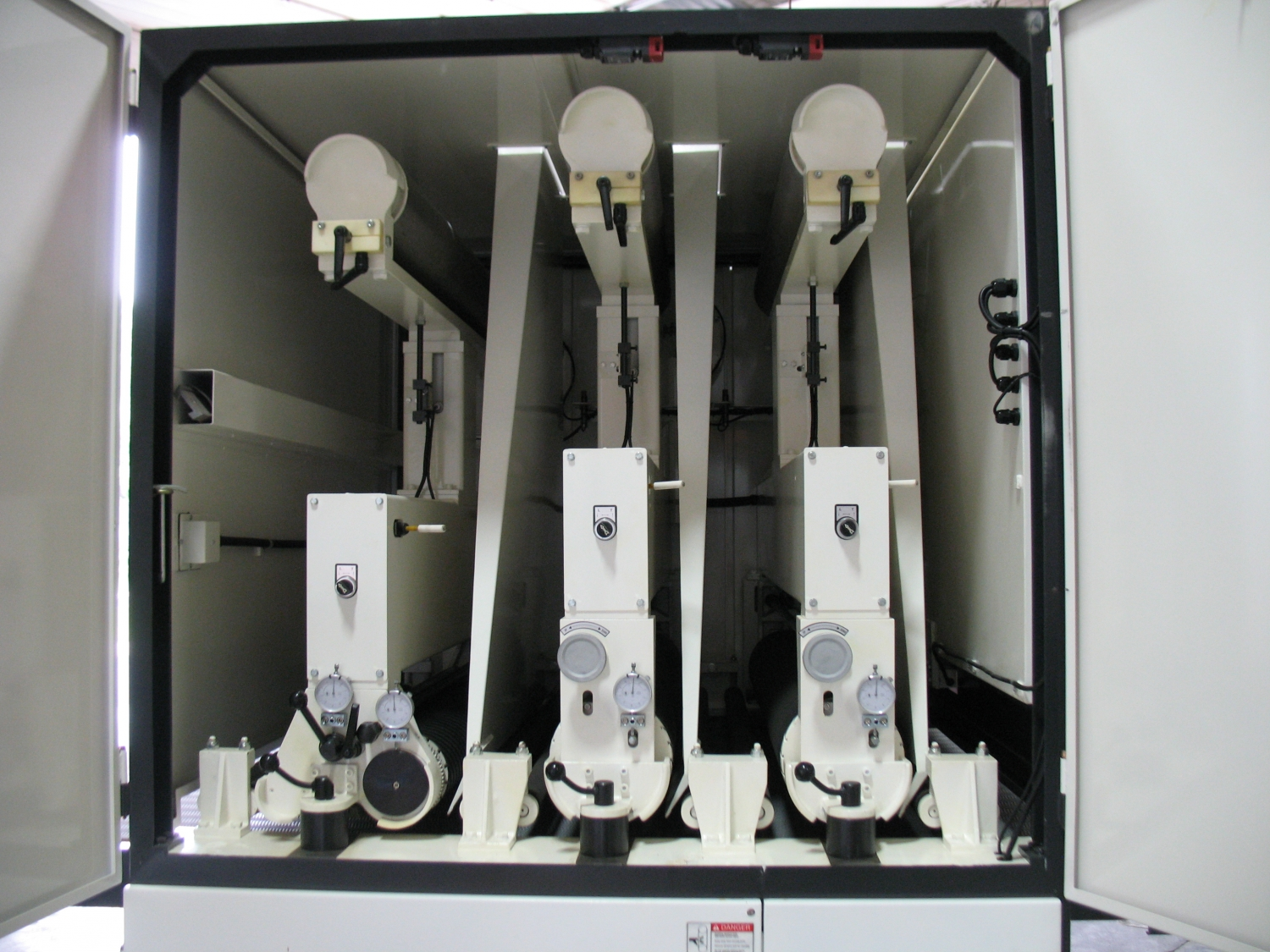

8" Diameter Contact Drum: (first & second heads)
Dual Action Sanding Head: (third head)
30 & 25 Horsepower Main Drive Motors
Dual Infeed and Dual Outfeed Holddown Rolls
Air Operated Disc Brakes
Centralized Control Panel
Four Jack Bed Construction
Infeed Stop Bar
Dial Indicators on Adjustable Drum/Platen Heads
Hour Meter
Main Motor Percentage Load Meters: Electronic Go-To Device
Motorized Thickness Adjustment
Through-Beam Abrasive Belt Tracking
Quick Release Outboard Support
Part Set-up Device
U.L. Listed Components
Spare Platen Assembly
Variable Speed Conveyor Drive
Factory Start-up and Training:
