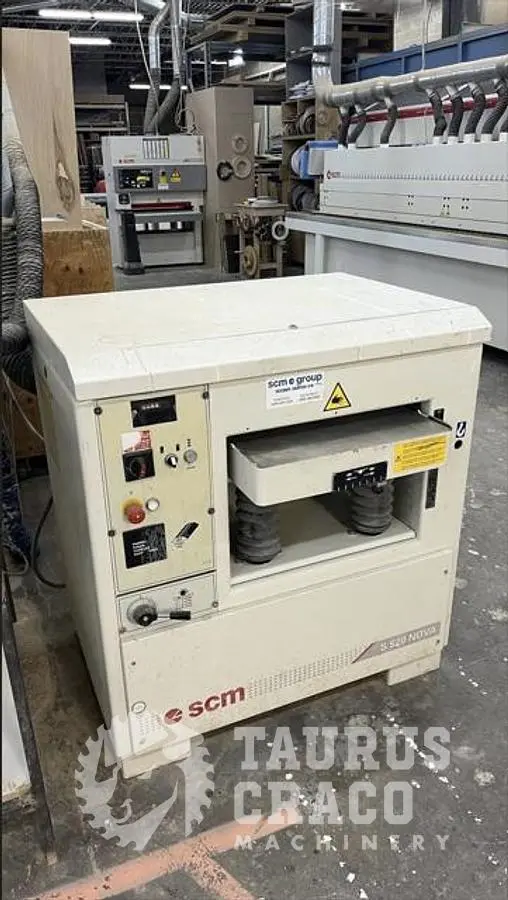

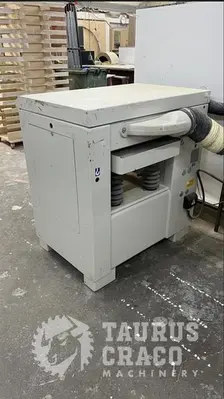

USED 2007 SCM S 520 NOVA THICKNESS PLANER

Manufacturer: SCM Group
Model: S 520 Nova
Year of Manufacture: 2007
Condition: Used – Good Operating Condition
Machine Type: Industrial Thickness Planer
The SCM S 520 Nova is a heavy-duty industrial thickness planer designed for precision sizing and surfacing of solid wood components. Built in Italy by SCM, the Nova series combines robust mechanical construction, reliable feeding performance, and precision cutterhead technology to deliver consistent planing results in demanding woodworking environments.

The machine features powered feed rollers, a rigid four-screw table lifting system, and a heavy-duty cutterhead assembly, making it ideal for cabinet shops, furniture manufacturers, millwork producers, and solid wood processing operations. SCM's Nova series is widely recognized for dependable performance, excellent finish quality, and long service life.
Heavy-duty industrial thickness planer
520 mm (20.5") planing capacity
Four-knife cutterhead
Powered feed system
Four-column table support system
Heavy-duty cast iron work table
Multiple feed speeds
Industrial SCM construction
Designed for continuous production use
Working Width: 520 mm (20.5")
Maximum Working Height: 250 mm (9.84")
Minimum Working Height: 3.5 mm (0.14")
Minimum Workpiece Length: 220 mm (8.7")
Maximum Stock Removal: 8 mm (0.31")
Cutterhead Diameter: 120 mm
Number of Knives: 4
Cutterhead Speed: 4,500 RPM
Feed Speeds:
5 m/min
8 m/min
12 m/min
18 m/min
Powered feed system designed for efficient processing of a wide range of materials.
Work Table Size: 520 mm × 900 mm
Dust Port Diameter: 150 mm
Recommended Airflow: 1300 m³/h
Main Motor Power: 5.5 kW (Approx. 7.5 HP)
Voltage: 600V
Phase: 3 Phase
Frequency: 60 Hz
Short Circuit Rating (Icc): 10.5 kA
Heavy-duty steel frame construction
Four-screw table lifting system
Powered feed rollers
Precision-machined work table
Industrial cutterhead assembly
Designed for long-term production accuracy
Net Weight: 680 kg (1,499 lbs)
Used – Good Operating Condition
The machine remains in good operating condition and is suitable for continued production use. Its heavy-duty construction, powered feed system, and industrial cutterhead design make it an excellent stock preparation machine for professional woodworking operations.
The SCM S 520 Nova is a proven industrial thickness planer offering precision machining, excellent surface finish quality, and dependable operation. With a 520 mm working width, 250 mm thickness capacity, four-knife cutterhead, 4,500 RPM cutterhead speed, and four-speed feed system, this machine remains an excellent choice for woodworking operations requiring reliable and accurate thickness planing performance. All technical specifications are sourced directly from SCM's Nova factory literature covering the S 520 Nova model.
