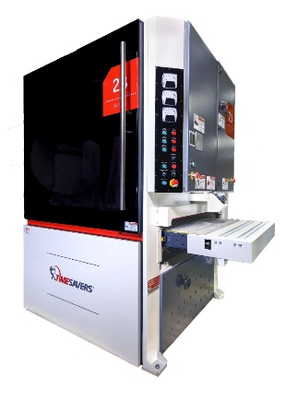

NEW TIMESAVERS 2331-23-001

Timesavers Model 2331-23-001 Three Head 37" Widebelt Sanders
Specifications:
Abrasive belt size: 37 x 75"
Main motor: 25, 20, 15HP
Maximum width stock: 36"
Minimum part length: 15"
Maximum thickness opening: 5"
Feed speed: 15-45 FPM
Passline height: 33-38"
Dust extraction: 3000 CFM (5" static pressure)
Compressed air usage: 6 CFM @ 90 psi
Standard Features:
8" Diameter Contact Drum: (first & second heads)
Dual Action Sanding Head: (third head)
Dual Infeed and Dual Outfeed Holddown Rolls
Air Operated Disc Brakes
Centralized Control Panel
Four Jack Bed Construction
Infeed Stop Bar
Dial Indicators on Adjustable Drum/Platen Heads
Hour Meter:
Main Motor Percentage Load Meters
Electronic Go-To Device
Motorized Thickness Adjustment
Through-Beam Abrasive Belt Tracking
Quick Release Outboard Support
Part Set-up Device
U.L. Listed Components
Spare Platen Assembly
Variable Speed Conveyor Drive
Factory Start-up & Training
