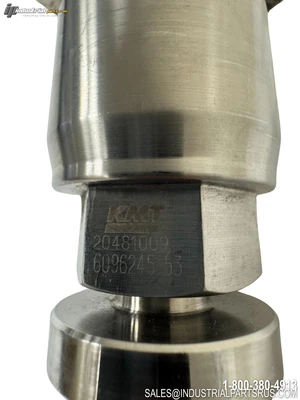

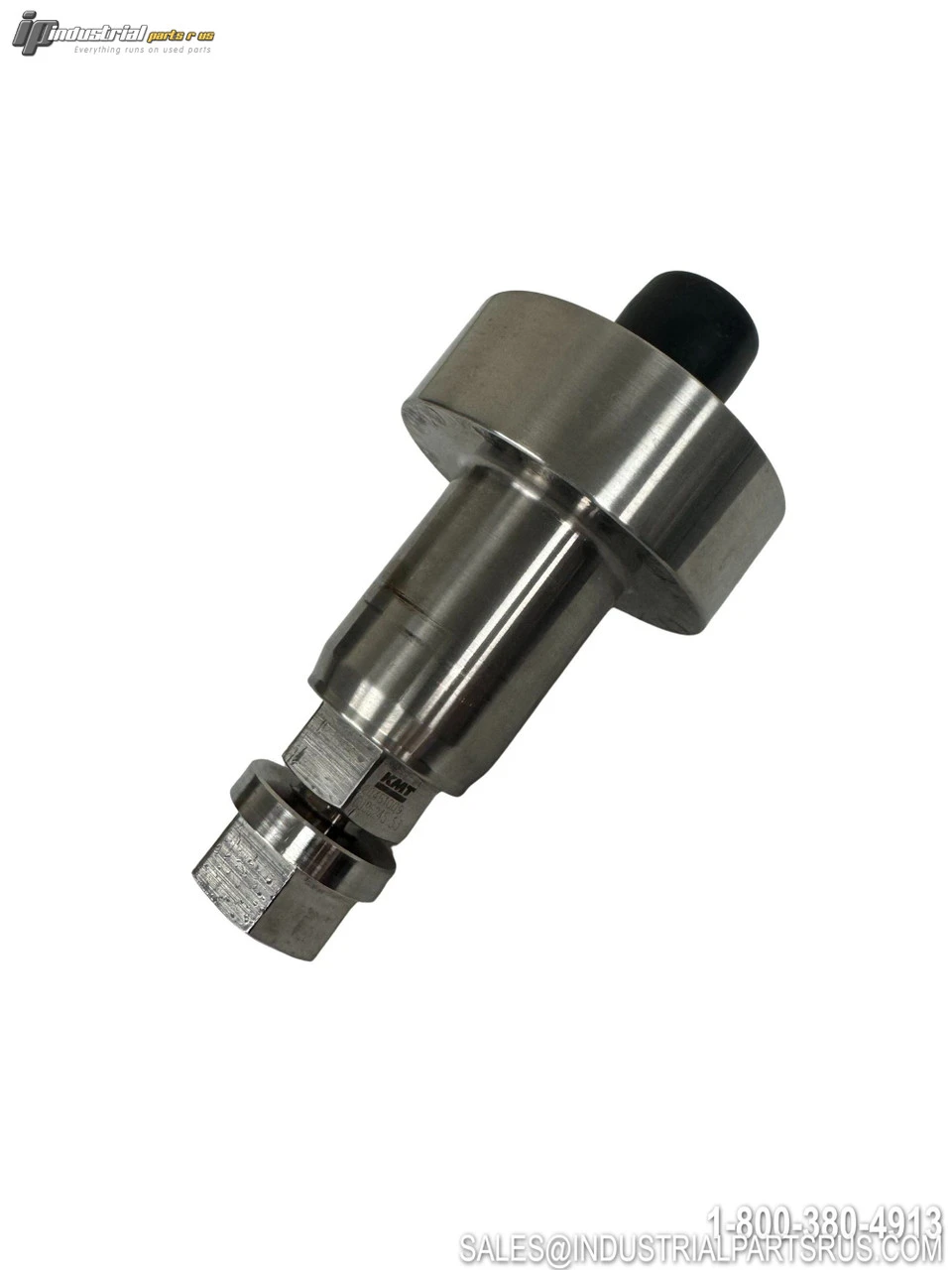

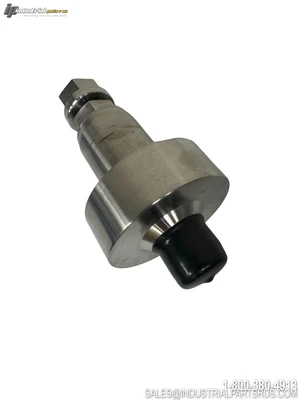

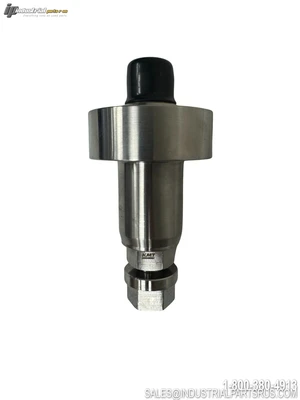

USED KMT 20481009

The KMT 20481009 is a genuine OEM High-Pressure (HP) Sealing Head Body designed for use in KMT Waterjet intensifier pump systems. It accommodates a 0.875-inch (7/8") plunger and is rated for ultra-high pressure service at 60,000 PSI (4,100 bar). This component is used in the topworks (intensifier) section of KMT Streamline SL-V, SL-VI, Classic, OEM, and Neoline waterjet pump units ranging from 15 to 100 horsepower, and is a core structural element of the Sealing Head Assembly (20481005). The LP water inlet is a 3/8 in NPT Female port, the HP outlet uses a 9/16-18 UNF Cone & Thread fitting, and maximum flow rate is 1.0 GPM at 60,000 PSI (60 HP).
Specification
Value
Brand
KMT
Model / Part Number
20481009
Part Description
Sealing Head Body, HP (High Pressure), Single Inlet
Internal Designation
SEAL HD-HP CYL,.88,45D
Plunger Diameter
0.875 in (7/8")
Rated Pressure (PSI)
60,000 PSI
Rated Pressure (bar)
4,100 bar
Compatible Pump Series
KMT SL-V, SL-VI, Classic, OEM, Neoline (15–100 HP)
Pump Horsepower Range
15 HP to 100 HP
Style
New Style (SL5 / SL-V)
Inlet Configuration
Single Inlet
Component Category
Topworks (Intensifier) — Sealing Heads & Assemblies
Part of Assembly
20481005 Sealing Head Assembly
Cross-Reference (Accustream)
1-14167
Alternate KMT Part Numbers
72110961, 80071293
OEM Status
KMT Genuine Part
Application
Waterjet Cutting Intensifier Pump
We warranty all items for 30 days from date of purchase.
