USED KMT 10138444

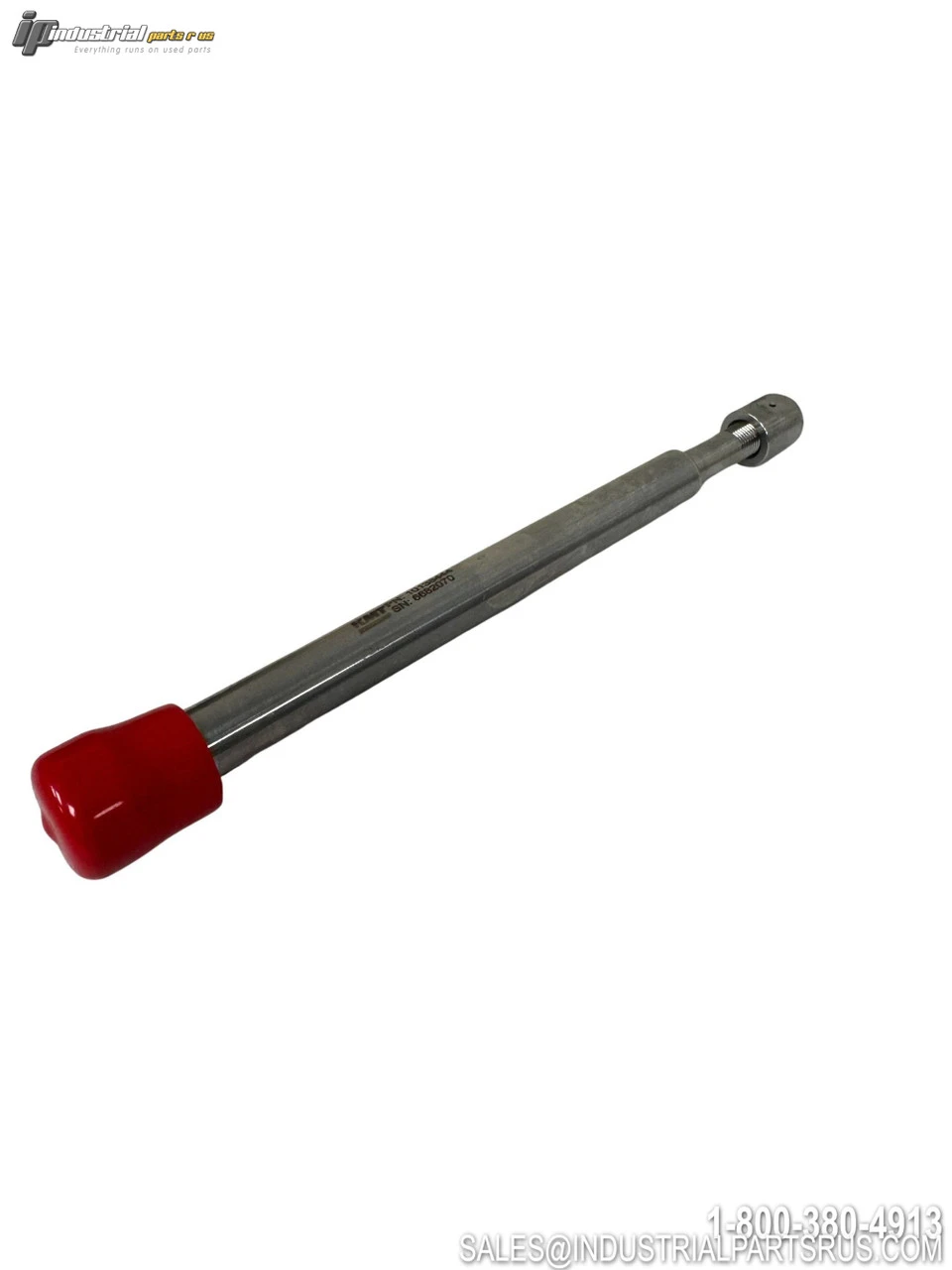

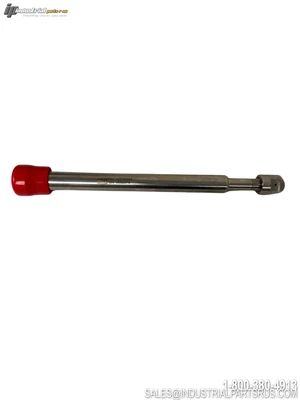

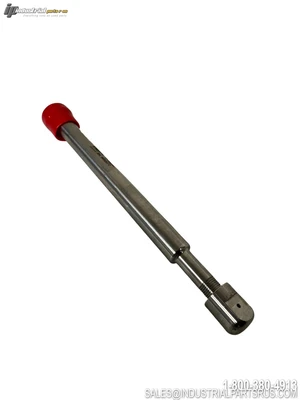

The KMT 10138444 is a high-pressure nozzle tube designed for KMT waterjet cutting head assemblies, specifically for pure water (non-abrasive) cutting applications. It features a 3/8" Nozzle Nut Connection (NNC) and is rated for 60,000 PSI (4,100 bar) operating pressure. The upper end connects to the valve body and accumulator, while the lower end connects to the gland nut, nozzle nut, and orifice within the cutting head assembly. This component is used within a pneumatically operated 2-way, 2-position cutting valve assembly.
Specification
Value
Brand
KMT
Model/Part Number
10138444
Product Type
HP Nozzle Tube
OEM Description
NOZ TBE-.38X8.0 / Nozzle Tube 8" NNC
OEM Listed Length
8.00 in (20.32 cm)
Actual Length
7.650 in
Outer Diameter
9/16 in (0.5625")
Tube Designation
0.38" x 8.0" / 0.97 x 20.32 cm
Connection Type
3/8" Nozzle Nut Connection (NNC)
Max Operating Pressure
60,000 PSI (4,100 bar)
Pressure Rating
60K
Net Weight
214 g
Application
KMT Waterjet Cutting Head – Pure Water / Pneumatic Cutting Valve Assembly
Upper Connection
Valve Body / Accumulator
Lower Connection
Gland Nut, Nozzle Nut, and Orifice
Compatible Valve Body
KMT Pneumatic Valve Body 10189181
Compatible Nozzle Nut
KMT 49863665
Compatible Gland Nut
KMT 49894249
Cross-Reference (AccuStream)
1-13708
Cross-Reference (Legacy)
103030
Cross-Reference (WSI)
VL10138444 / 0560996543 / 10015162
Manufacturer Full Name
KMT Waterjet Systems Inc.
We warranty all items for 30 days from date of purchase.
