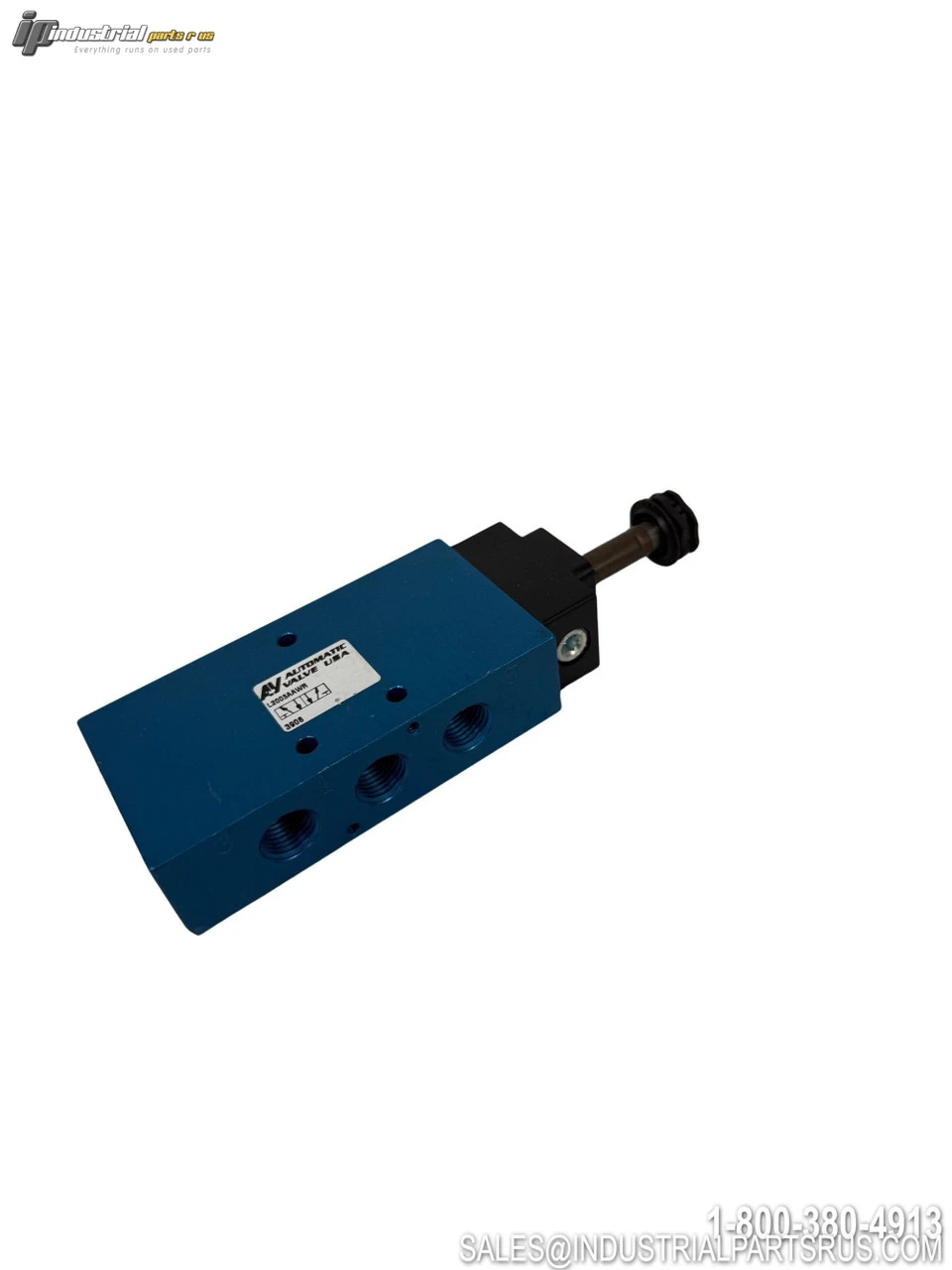

USED AUTOMATIC VALVE L2003AAWR

The Automatic Valve L2003AAWR is an L20 Series compact spool directional control valve configured for solenoid pilot actuation. It features a single 3/2 (3-way, 2-position) normally closed function with spring return and 1/4" NPT port connections. This is the valve body only — the solenoid coil is ordered separately by adding the appropriate suffix to the model number, providing flexibility to select voltage, enclosure type, and conduit style for any application.
The L20 Series uses a balanced spool construction with a bidirectional tapered Tee-Seal that eliminates sticking problems and delivers reliable shifting over millions of cycles. The pilot uses full air line pressure to shift the valve, with a flow capacity of Cv 1.8 (1,770 Nl/min). The valve supports inline mounting and is also compatible with A8020 series manifold systems for multi-station configurations.
Specification
Value
Brand
Automatic Valve
Model / Part Number
L2003AAWR
Product Series
L20
Product Type
Compact Spool Solenoid Pilot Valve (Valve Body Only)
Valve Function
Single 3/2 (3-Way, 2-Position)
Default Position
Normally Closed (NC)
Return Type
Spring Return
Actuation
Solenoid Pilot
Coil / Voltage
Not Included (ordered separately via suffix)
Port Size
1/4" NPT
Mounting Style
Inline (also Manifold Mountable)
Body Material
Aluminum
Flow Capacity
Cv 1.8 (1,770 Nl/min)
Internal Pilot Pressure Range
35 to 150 PSIG (240 to 1030 kPa)
Max Operating Pressure
150 PSIG (10.3 bar)
Seal Material
Buna-N (standard)
Manual Override
Push Non-Locking (standard)
External Pilot Supply
Field Convertible
Cycle Life Rating
20 Million Cycles (SAE tested)
Weight
Approx. 1.3 lbs (0.59 kg)
Compatible Manifold
A8020 Series
We warranty all items for 30 days from date of purchase.
