USED SMC VFS2220-5DZ-02

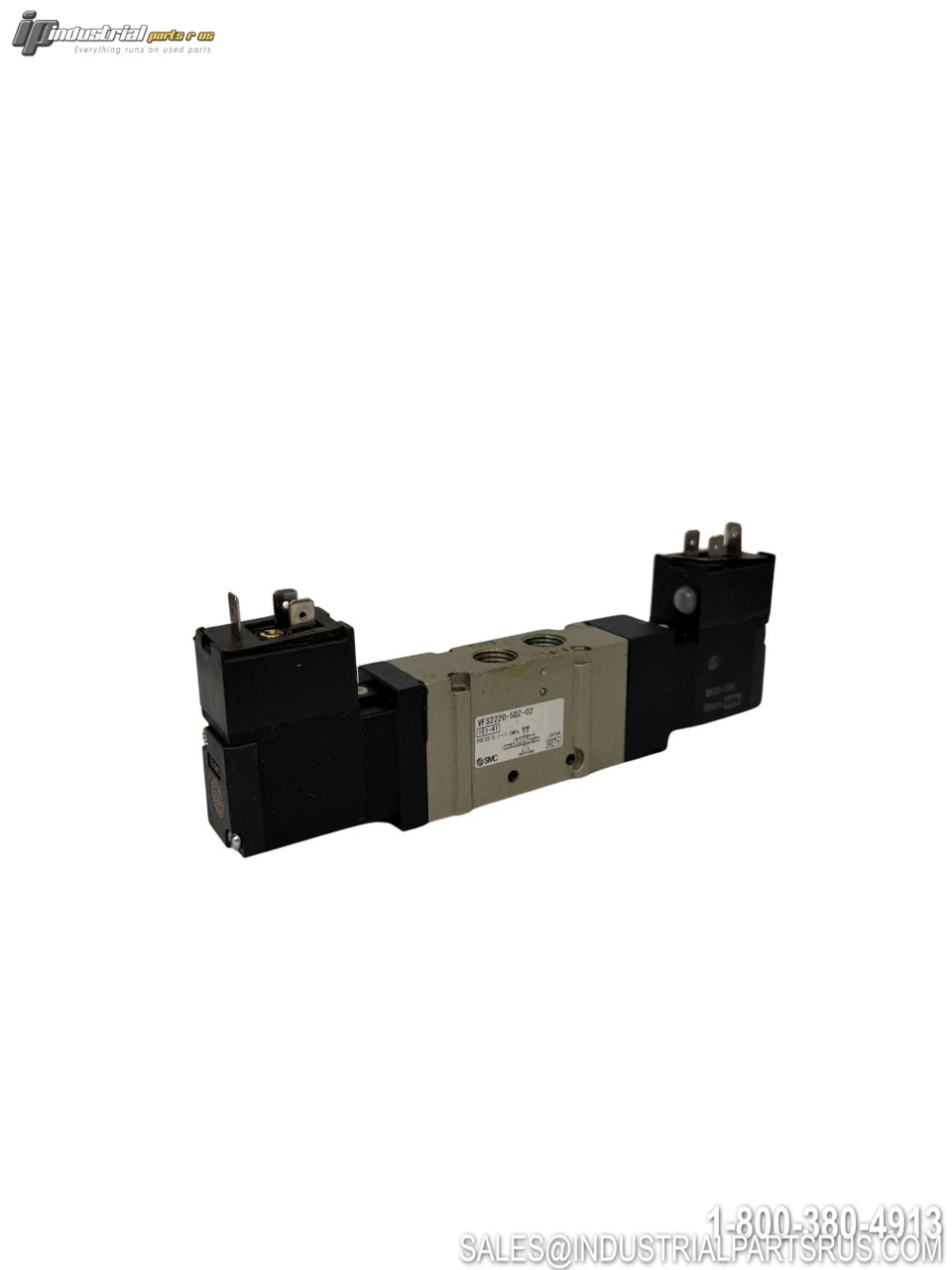

The SMC VFS2220-5DZ-02 is a 5-port, 2-position double pilot-operated solenoid valve from the VFS2000 series, featuring metal seal main valve construction and a body-ported individual exhaust configuration. It operates on 24VDC and includes a DIN terminal electrical connection with an integrated light and surge voltage suppressor. Designed for driving medium and large pneumatic cylinders, this valve is compatible with a wide variety of SMC manifold options including the VV5FS1 through VV5FS5 bar-type manifold bases.
Specification
Value
Brand
SMC
Model / Part Number
VFS2220-5DZ-02
Series
VFS2000
Product Type
5-Port Pilot Operated Solenoid Valve
Valve Function
2-Position Double
Number of Ports
5
Number of Solenoids
Double
Coil / Rated Voltage
24 VDC
Port Size
1/4"
Thread Standard
Rc (PT)
Piping / Body Type
Body Ported, Individual Exhaust, Side Pipe
Pilot Type
Internal Pilot
Electrical Entry
DIN Terminal
Light / Surge Voltage Suppressor
Included
Manual Override
Non-Locking Push Type (Flush)
Seal Material
Metal
Coil Insulation Class
Class B
Maximum Operating Pressure
1.0 MPa (101 psi / 9.9 kgf/cm²)
Minimum Operating Pressure (Pilot)
0.1 MPa
Proof Pressure
218 psi (1.5 MPa)
Flow Rate
7.2 CFM; Cv 0.90 (P to A/B), Cv 0.85 (A/B to R1/R2)
Sonic Conductance (C)
4.0 dm³/(s·bar) P to A/B; 3.5 dm³/(s·bar) A/B to R1/R2
Response Time
13 ms
Power Consumption
2.04 W (DC)
Voltage Tolerance
-15% to +10%
Operating Medium
Air, Inert Gas
Ambient & Fluid Temperature
-10 to 60°C (14 to 140°F)
Weight
0.90 lbs (approx. 0.41 kg)
Compatible Manifolds
VV5FS1, VV5FS2, VV5FS3, VV5FS4, VV5FS5
Standards Met
ISO VG32, JIS B 8375, JIS B 8375-1981, JIS C 0920, JIS C 4003
