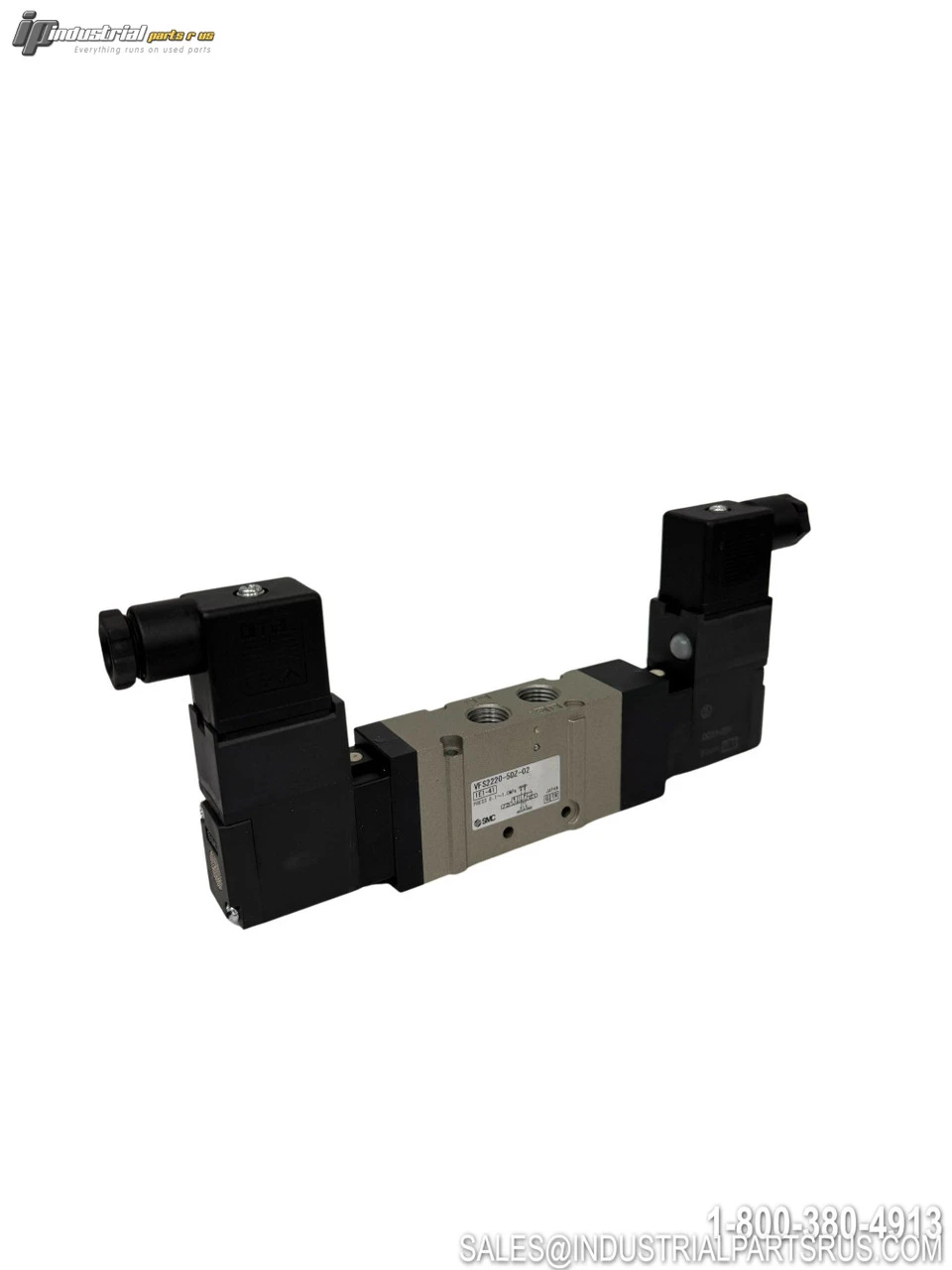

USED SMC VFS2220-5DZ-02

The SMC VFS2220-5DZ-02 is a 5-port, pilot-operated, 2-position double solenoid valve from SMC's VFS2000 Series. It features a metal seal main valve construction and body-ported individual exhaust configuration, designed for driving medium and large pneumatic cylinders. Key features include a 24 VDC coil, DIN terminal electrical entry, internal pilot, non-locking flush manual override, light/surge voltage suppressor, and Rc (PT) 1/4" side pipe porting.
Specification
Value
Brand
SMC
Model / Part Number
VFS2220-5DZ-02
Series
VFS2000
Product Type
Solenoid Valve
Number of Ports
5
Valve Function / Positions
2-Position Double
Actuation Type
Pilot Operated
Pilot Type
Internal Pilot
Coil Voltage
24 VDC
Electrical Entry
DIN Terminal
Light / Surge Voltage Suppressor
Included
Manual Override
Non-Locking Push Type (Flush)
Body / Exhaust Type
Body Ported, Individual Exhaust
Piping Style
Side Pipe
Port Size
1/4"
Thread Type
Rc (PT)
Seal Type
Metal Seal
Valve Function (Spool)
Spool
Min. Operating Pressure
0.1 MPa
Max. Operating Pressure
1.0 MPa (9.9 kgf/cm²)
Flow Rate (Cv)
0.85–0.90 Cv (P→A/B: 0.90, A/B→R1/R2: 0.85)
Flow Rate (Sonic Conductance C)
4.0 dm³/(s·bar) P→A/B; 3.5 dm³/(s·bar) A/B→R1/R2
Flow Rate (CFM)
7.2 CFM
Power Consumption
1.8 W (DC)
Ambient / Fluid Temperature
-10 to 60°C
Body Material
Aluminium Die-Cast
Spool / Sleeve Material
Stainless Steel
Media
Air / Inert Gas
Coil Insulation Class
Class B
Applicable Cylinder Size
ø63 mm
Compatible Manifold Types
VV5FS1, VV5FS2, VV5FS3, VV5FS4, VV5FS5
Weight
0.90 lbs (approx. 0.41 kg)
Standards Met
ISO VG32, JIS B 8375, JIS B 8375-1981, JIS C 0920, JIS C 4003
We warranty all items for 30 days from date of purchase.
