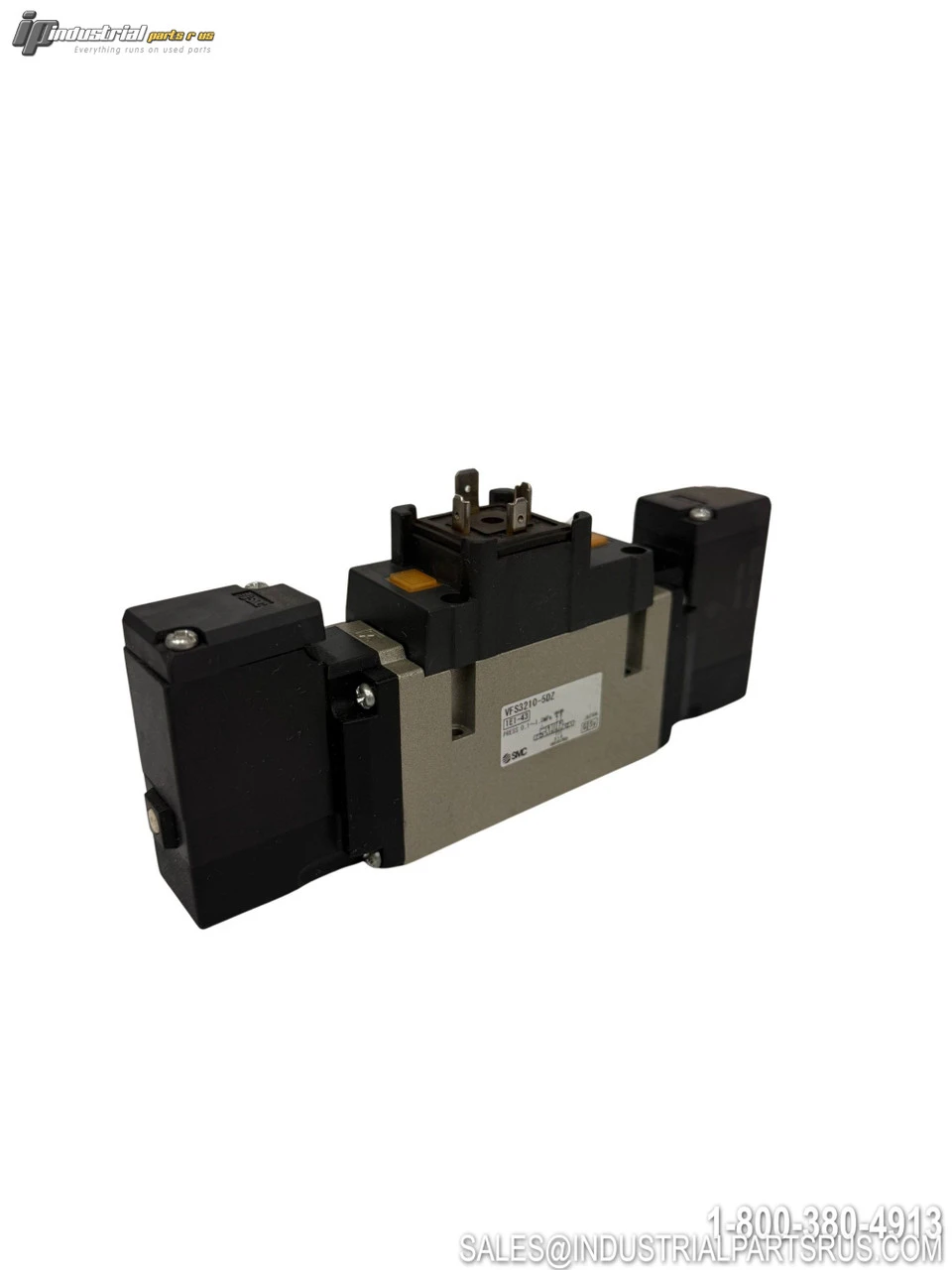

USED SMC VFS3210-5DZ

The SMC VFS3210-5DZ is a 5-port, 2-position double solenoid, pilot operated pneumatic valve from the VFS3000 Series. It features a metal seal design and is configured for base mounted, non plug-in installation with a DIN terminal electrical connection. The valve operates on 24VDC coil voltage and includes a non-locking flush manual override, making it well-suited for directional control of pneumatic actuators in industrial automation applications.
Specification
Value
Brand
SMC
Model / Part Number
VFS3210-5DZ
Series
VFS3000
Product Type
5-Port Pilot Operated Solenoid Valve
Coil Voltage
24VDC
Configuration
2-Position Double Solenoid
Number of Ports
5
Flow Direction
4-Way
Actuation
Piloted Solenoid (Internal Pilot)
Mounting / Piping Type
Base Mounted, Non Plug-In
Electrical Entry
DIN Terminal
Thread Type
NPTF (NPT)
Port Size
3/8 NPTF
Subplate Port Size
3/8 NPTF
Maximum Operating Pressure
145 psi (1.0 MPa / 9.9 kgf/cm²)
Minimum Operating Pressure
0.1 MPa (14.5 psi)
Proof Pressure
218 psi
Flow Rate
14.4 CFM
Coil Power Consumption
1.8W (DC)
Seal Material
Metal
Operating Medium
Air / Inert Gas
Ambient & Fluid Temperature
-10 to 60°C (14 to 140°F)
Manual Override
Non-Locking Flush Push
Pipe Direction
Side Pipe
We warranty all items for 30 days from date of purchase.
