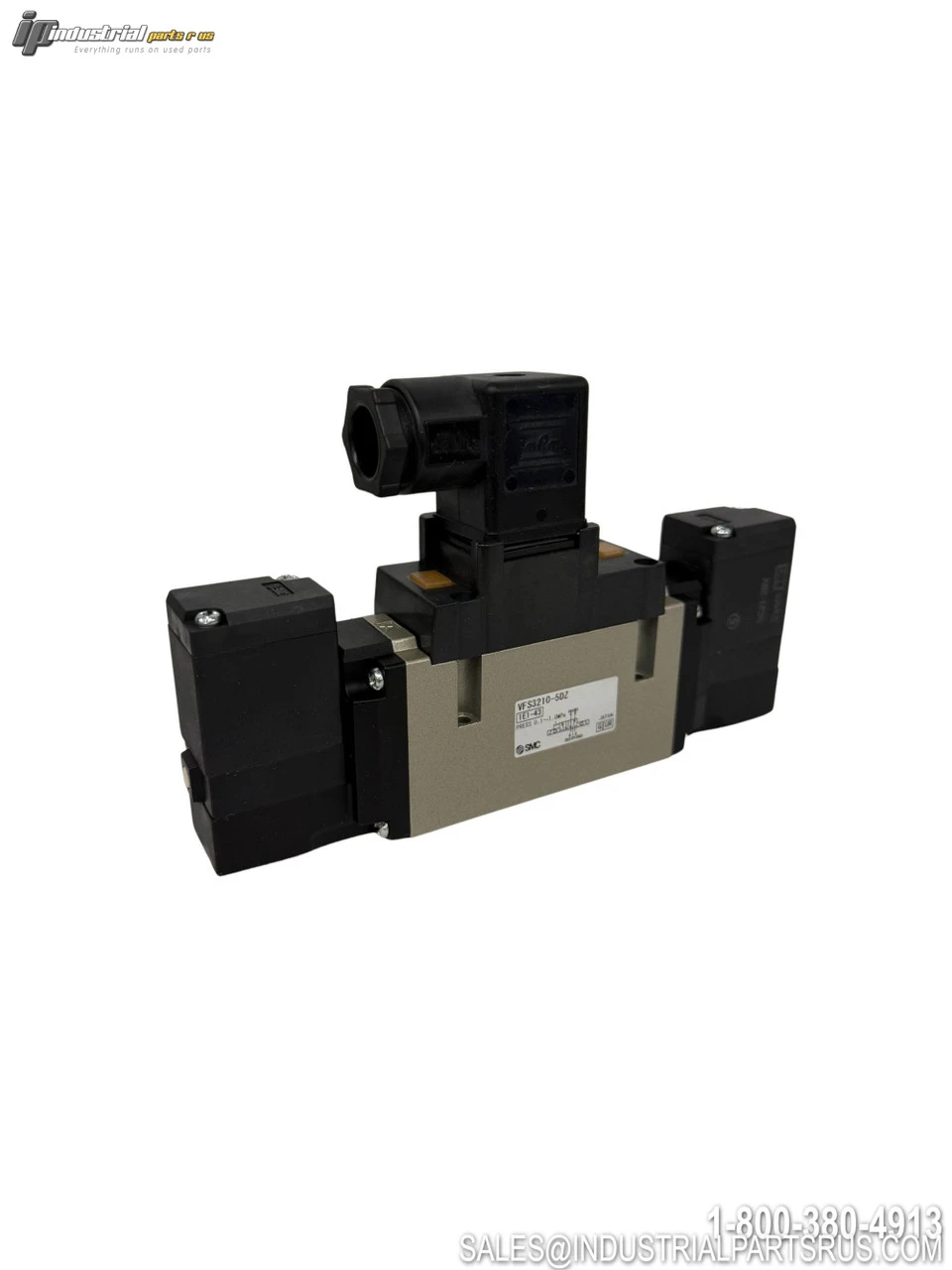

NEW SMC VFS3210-5DZ

The SMC VFS3210-5DZ is a 5-port, 2-position (5/2-way) double solenoid pilot operated valve from SMC's VFS3000 Series, featuring a metal seal design and base mounted non plug-in configuration. It accepts a 24VDC coil with DIN terminal electrical entry and is suitable for directional control of pneumatic actuators using air or inert gas. The valve offers a non-locking flush push-type manual override and is designed for use with 3/8" port sizes in demanding industrial automation environments.
Specification
Value
Brand
SMC
Model / Part Number
VFS3210-5DZ
Series
VFS3000
Product Type
5-Port Pilot Operated Solenoid Valve
Coil Voltage
24VDC
Configuration
2-Position Double Solenoid
Number of Ports
5
Number of Positions
2
Piping / Mounting Type
Base Mounted Non Plug-In
Actuation
Pilot Operated (Internal Pilot)
Seal Material
Metal
Electrical Entry
DIN Terminal
Thread Type
NPT (NPTF)
Port Size
3/8" NPTF
Flow Direction
4-Way
Operating Pressure Range
0.1 to 1.0 MPa (14.5 to 145 psi)
Proof Pressure
1.5 MPa (218 psi)
Maximum Operating Pressure
9.9 kgf/cm² (145 psi)
Flow Rate
14.4 CFM / C: 6.8 dm³/(s·bar) / Cv: 1.6
Power Consumption
1.8 W DC
Operating Temperature Range
-10°C to 60°C (14°F to 140°F)
Operating Medium
Air, Inert Gas
Manual Override
Non-Locking Push (Flush)
Applicable Cylinder Bore
Up to ø80 mm
Conformance
CSA Standard
Manufacturer
SMC Corporation
We warranty all items for 30 days from date of purchase.
