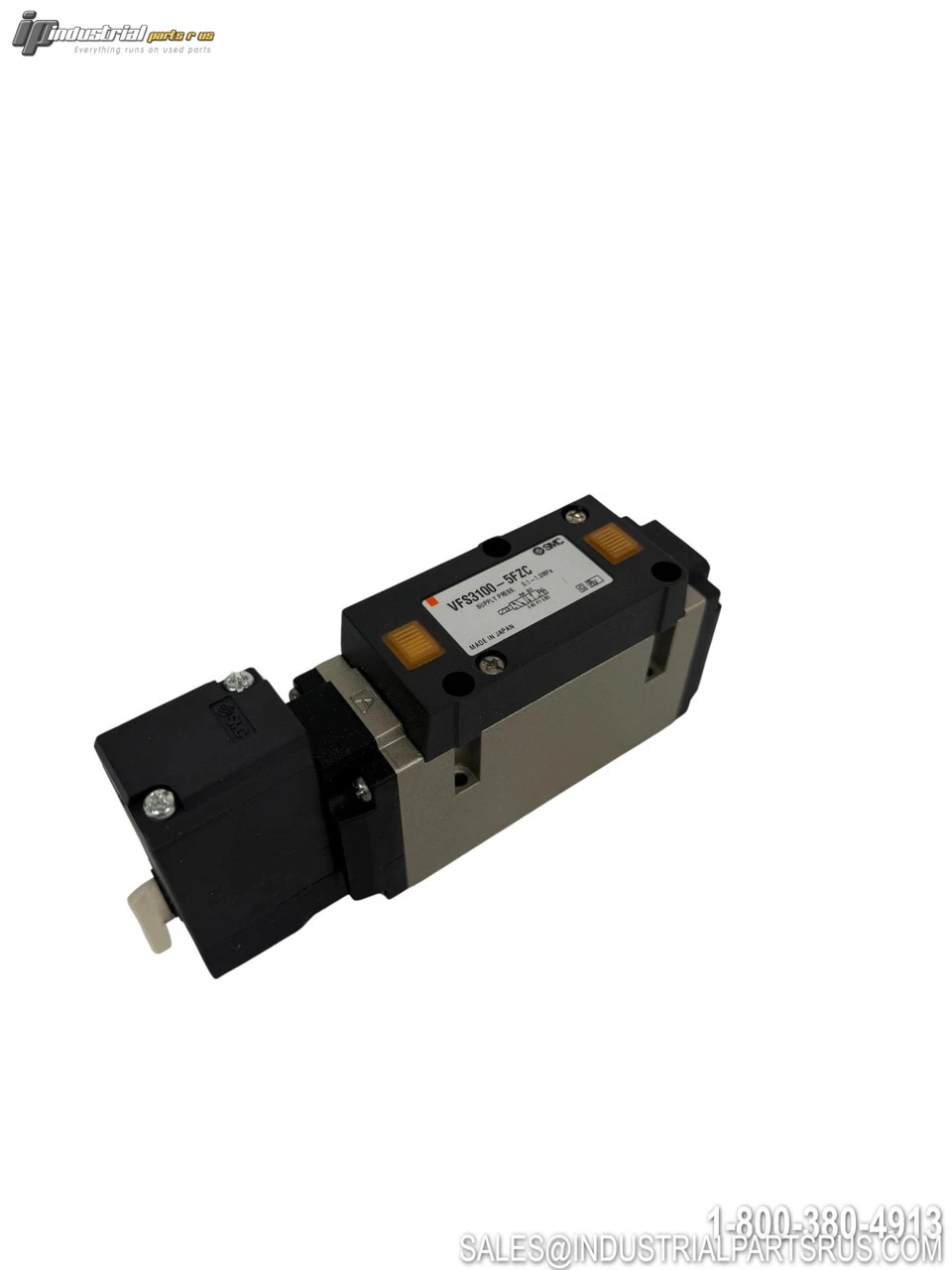

USED SMC VFS3100-5FZC

The SMC VFS3100-5FZC is a 5-port, 2-position single solenoid pilot operated directional control valve from SMC's VFS3000 Series, featuring a metal seal main valve construction and base-mounted plug-in configuration. It operates on a 24VDC coil, includes a light/surge voltage suppressor, and is fitted with a locking lever-type manual override — distinguishing it from the non-locking flush (VFS3100-5FZ) variant. Designed for driving medium and large pneumatic cylinders, this valve is compatible with a wide variety of SMC manifold options including VV5FS1 through VV5FS5 series.
Specification
Value
Brand
SMC
Model / Part Number
VFS3100-5FZC
Series
VFS3000
Number of Ports
5 (4/5 Port)
Valve Function
2-Position Single Solenoid
Coil Voltage (Rated)
24VDC
Actuation Type
Pilot Operated (Internal Pilot, Spring Return)
Seal Type
Metal Seal
Mounting Type
Base Mounted
Electrical Entry
Plug-In (DIN Connector)
Manual Override
Locking Type (Lever)
Voltage Suppressor
With Light / Surge Voltage Suppressor
Port Size
Without Sub-Plate (For Manifold Use) — 1/4 and 3/8 in manifold variants
Thread Type
Rc (PT)
Maximum Operating Pressure
1.0 MPa (9.9 kgf/cm²)
Minimum Operating Pressure
0.1 MPa (1.0 kgf/cm²)
Operating / Fluid Temperature
-10°C to +60°C (14°F to 140°F)
Flow Capacity (C value)
5.8 dm³/(s·bar) at 3/8 port
Cv Flow Rate
1.4 / 1.3 Cv
Coil Power Consumption
1.8 W (DC)
Voltage Allowance Range
-15% to +10% of rated voltage
Body Material
Die Cast Aluminum
Operating Media
Air, Inert Gas
Lubrication Required
Not Required
Compatible Manifolds
VV5FS1, VV5FS2, VV5FS3, VV5FS4, VV5FS5
Standards
ISO VG32, JIS B 8375, JIS C 0920, JIS C 4003
Overall Dimensions (approx.)
136 mm L x 32.5 mm W x 59 mm H
We warranty all items for 30 days from date of purchase.
