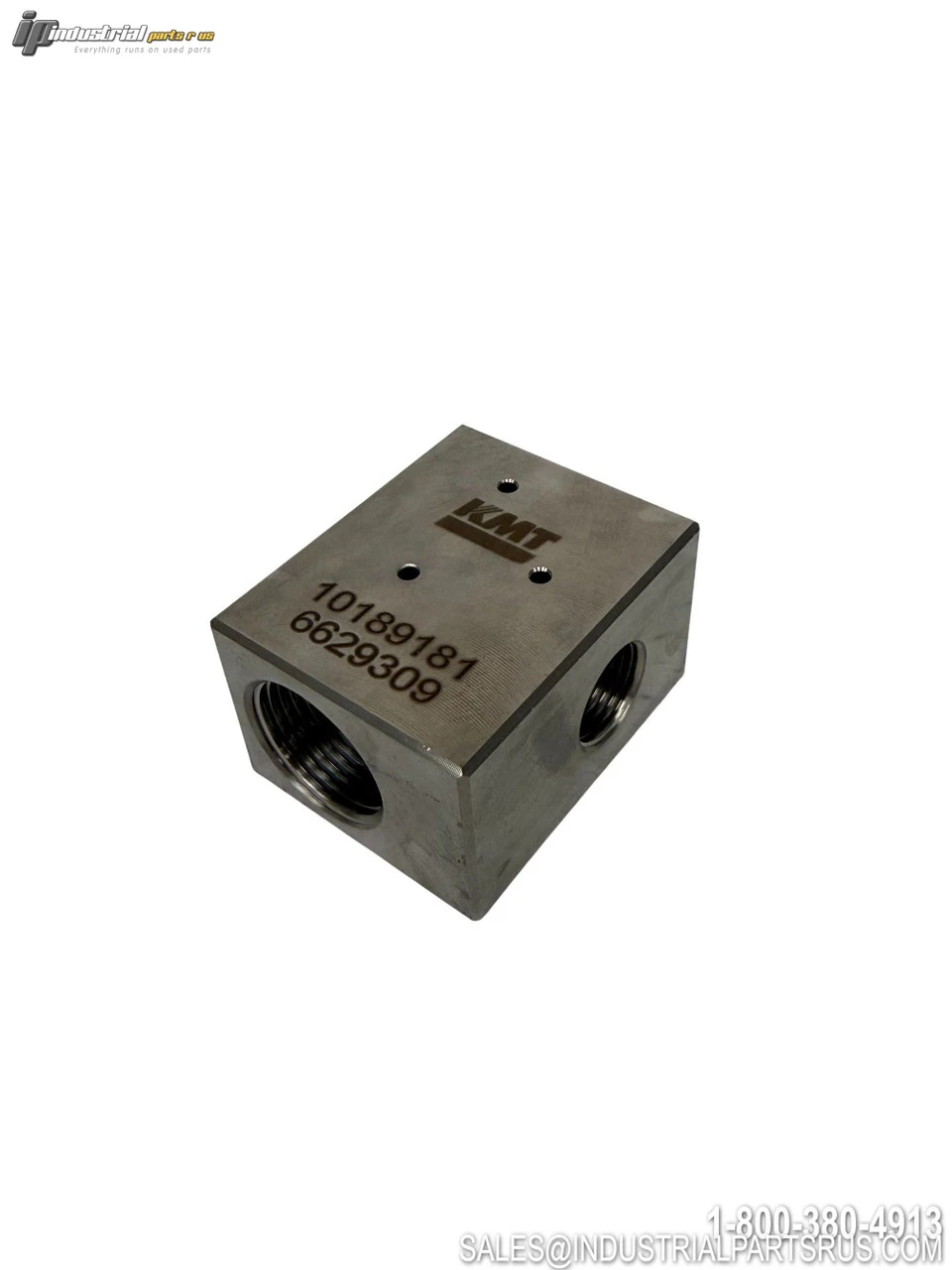

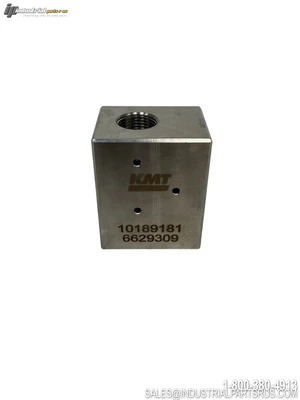

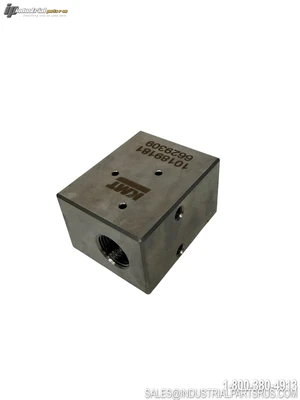

USED KMT 10189181

The KMT Waterjet 10189181 is a genuine OEM high-pressure pneumatic valve body designed for use in waterjet cutting systems. It features a square body configuration with two high-pressure ports and is rated for 60,000 PSI (4,100 bar) operation. This valve body is compatible with both normally open and normally closed pneumatic dump valve assemblies used on KMT 60K cutting heads and units.
Specification
Value
Brand
KMT Waterjet
Model / Part Number
10189181
Product Type
Pneumatic Valve Body (High Pressure)
Description
Body, HP Water Valve, Pneumatic (BODY-HP WTR VLV,PNEU)
Body Shape / Style
Square
Number of Ports
2-Port
Pressure Rating
60,000 PSI / 4,100 bar
Supply Port Connection
3/8 HP Connection
Port Sizes
(2) 0.38 in, (1) 0.56 in
Material
Stainless Steel
Valve Operation
Normally Open & Normally Closed Compatible
Application
KMT 60K Waterjet Cutting Head / Pneumatic Dump Valve Assembly
OEM Status
KMT Waterjet Certified Genuine OEM Part
Weight
1.70 lbs
Cross Reference / Replaces
AccuStream Part# 1-11320; WSI Part# VL10189181
Barton Product Code
WK000187
We warranty all items for 30 days from date of purchase.
