NEW TIMESAVERS 3321-25-01

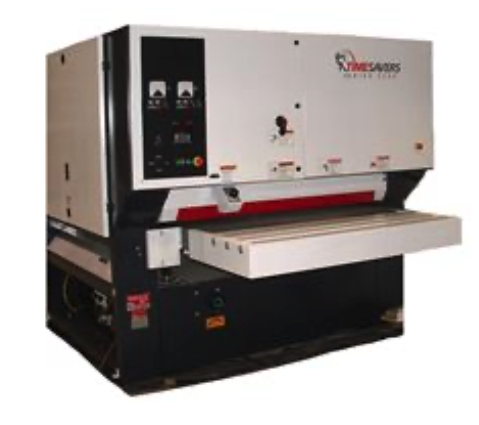

Timesavers Model 3321-25-01 Two Head 52" High Production Widebelt Sander
Specifications:
Abrasive belt size: 52x75"
Main motor: 40HP & 30HP
Maximum width stock: 51"
Minimum part length: 19"
Maximum thickness opening: 6"
Feed speed: 15-45 FPM
Passline height: 32-38"
Dust extraction: 3655 CFM (5" static pressure)
Compressed air usage: 4 CFM @ 90 psi
Standard Features:
Drum Head: (first head position)
Dual Action Sanding Head: (second head position)
40 & 30 Horsepower Main Drive Motors
Infeed Stop Bar
Infeed Roller Table
Holddown Shoes and Rolls
Air Operated Disc Brakes
Centralized Control Panel
Dial Indicators on Adjustable Drum/Platen Heads
Electronic Go-To Device
Air Pop Up on Drums/Platens
Quick Release Outboard Support
Main Motor Percentage Load Meter
Hour Meter
Four Jack Bed Construction
Motorized Thickness Adjustment
Variable Speed Conveyor Drive
Through-Beam Abrasive Belt Tracking
U.L. Listed Components
Factory Start-up and Training
