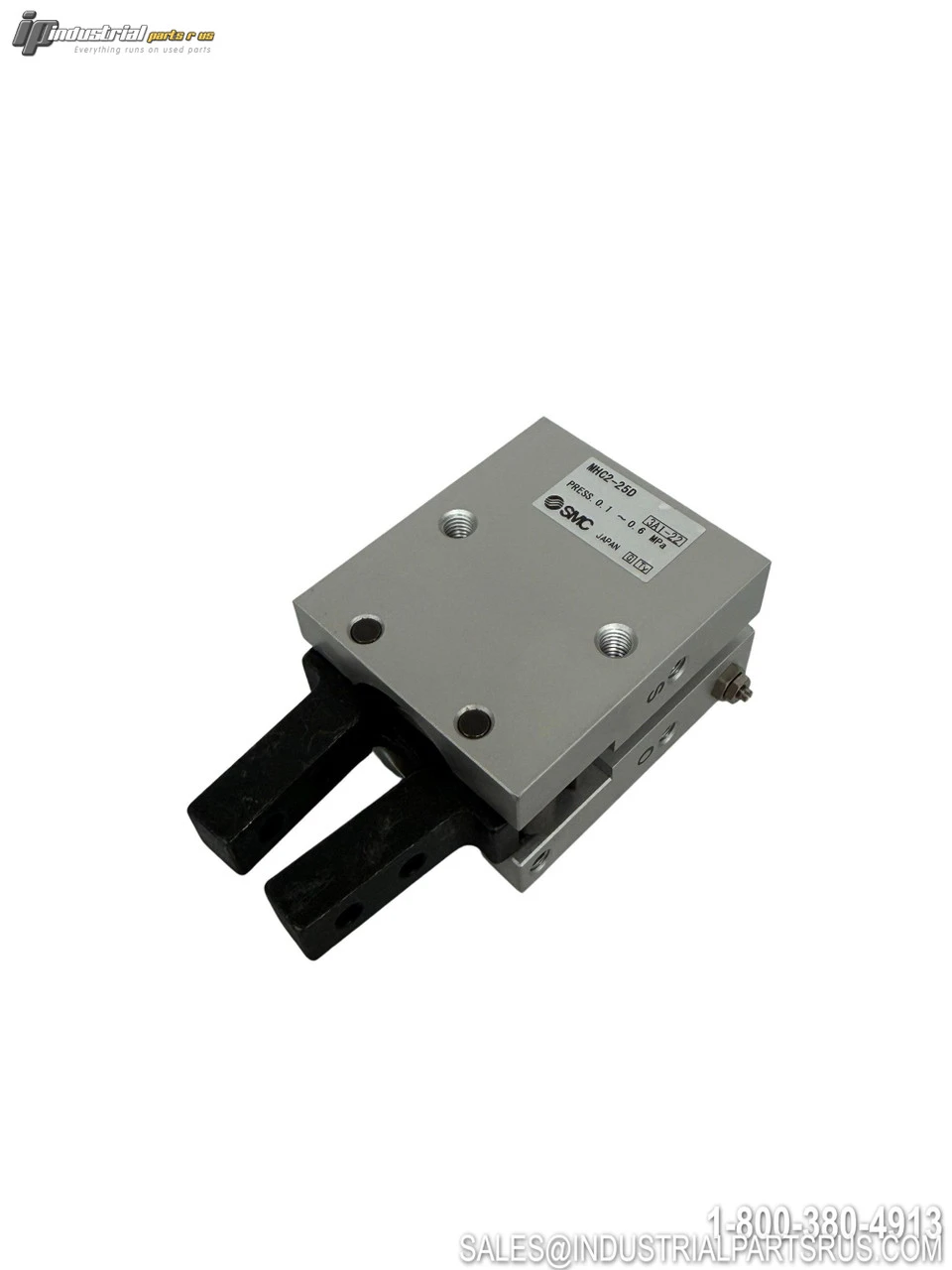

USED SMC MHC2-25D

The SMC MHC2-25D is an angular-style, compact 2-finger pneumatic air gripper from SMC's MHC2 Series. It features a double piston mechanism that delivers a large gripping moment of 1.36 N·m while maintaining a compact body envelope. The gripper is designed for applications requiring angular finger actuation, with a finger opening/closing angle range of 30° to –10°, making it well-suited for workpieces of irregular shapes or tight-space installations.
Specification
Value
Brand
SMC
Model / Part Number
MHC2-25D
Series
MHC2
Product Type
Angular Type Air Gripper (Pneumatic Gripper)
Bore Diameter
25 mm
Cylinder Action
Double Acting
Gripper Type
Angular
Number of Fingers
2 Finger – Standard (Basic Style)
Opening / Closing Angle (Each Side)
30° to –10°
Gripping Moment (Double Acting)
1.36 N·m
Gripping Moment (Single Acting)
1.08 N·m
Operating Pressure – Double Acting
0.1 to 0.6 MPa (15 to 87 psi)
Operating Pressure – Single Acting
0.25 to 0.6 MPa
Fluid
Air
Port Size
M5 x 0.8
Body Option
Side Ported
Ambient / Fluid Temperature
–10 to 60°C (14°F to 140°F)
Overall Length
92 mm
Overall Width
52 mm
Overall Height
33.6 mm
Weight
316 g (catalog value)
Repeatability
±0.01 mm
Max Operating Frequency
180 cycles/min
Lubrication
Not Required
Auto Switch Compatible
Yes – Solid State (3-wire, 2-wire); recessed mounting groove
Built-in Variable Throttle
Yes
Manufacturer
SMC Corporation
We warranty all items for 30 days from date of purchase.
