NEW TIMESAVERS 2331-45-006

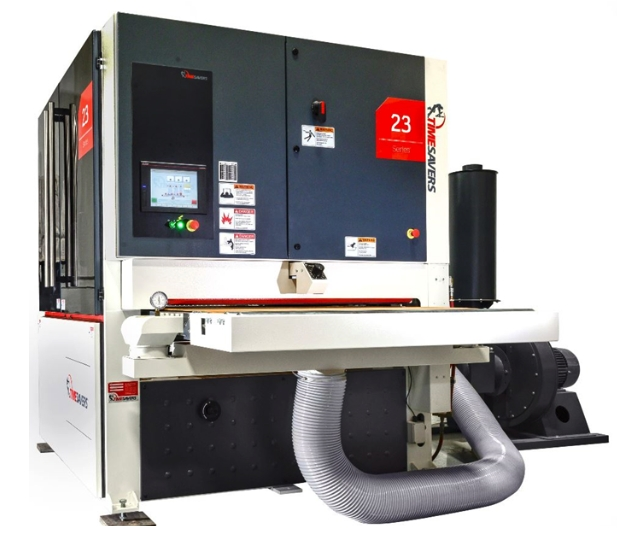

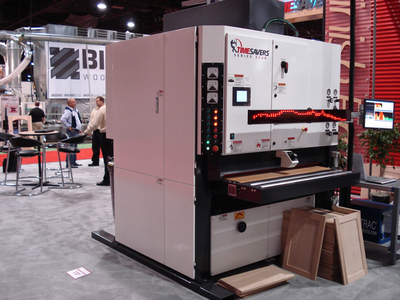

Timesavers Model 2331-45-006 Three Head 52" Segmented Widebelt/Polisher
Specifications:
Abrasive belt size: 52 x 103"
Main motor first head: 30HP
Main motor second and third heads: 25HP
Maximum width stock: 51"
Minimum part size: 17"
Maximum thickness opening: 5"
Infeed loading area: 14"
Feed speed: 15-45 FPM
Approximate full load amps at 460 volt: 119
Passline height: 33-38"
Dust extraction: 5250 CFM (5" Static Pressure)
Compressed air usage: 8 CFM @ 90psi
Standard Features:
8" Diameter Contact Drum: (1st & 2nd head positions)

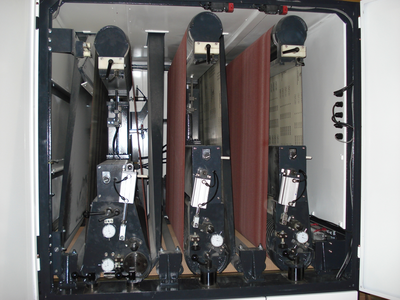

Dual Action Segmented Sanding Heads: (3rd position)
Dual Infeed and Dual Outfeed Holddown Rolls
PLC Controller with HMI Interface
Air Operated Disc Brakes
Part Set-up Device
Infeed Stop Bar
Hour Meter
Centralized Control Panel
Main Motor Percentage Load Meter
Through-Beam Abrasive Belt Tracking
Dial Indicators on Adjustable Drum/Platen Heads
Motorized Thickness Adjustment
Quick Release Outboard Support
U.L. Listed Components
Variable Speed Conveyor Drive
