NEW TIMESAVERS 2331-24-006

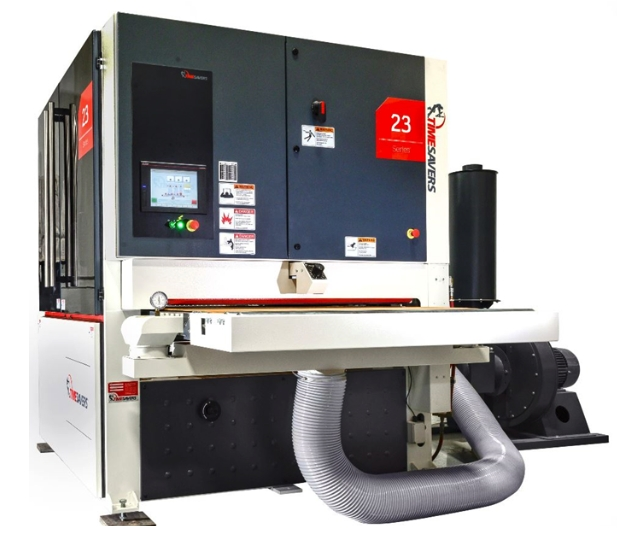

Timesaver Model 2331-24-006 Three Head 43" Segmented Widebelt/Polisher
Specifications:
Abrasive belt size: 43 x 75"
Main motor first head: 25HP
Main motor second and third heads: 20HP
Maximum width stock: 42"
Minimum part size: 6 x 6" with Vacuum
Maximum thickness opening: 5"
Infeed loading area: 14"
Feed speed: 15-45 FPM
Approximate full load amps at 460 volt: 144
Passline height: 33-38"
Dust extraction: 5500 CFM (5" Static Pressure)
Compressed air usage: 6 CFM @ 80psi
compressed air usage for belt blow-off: 41 CFM @ 80psi
Standard Features:
8" Diameter Contact Drum: (1st & 2nd head positions)
Dual Action Segmented Sanding Heads: (3rd position)
A.C. Variable Frequency Main Drive Motor: (3rd head)
Abrasive Belt Blow-Off On Third Head
Dual Infeed and Dual Outfeed Holddown Rolls
PLC Controller with HMI Interface
Panel Cleaning Brush
Air Operated Disc Brakes
Part Set-up Device
Infeed Stop Bar
Hour Meter
Centralized Control Panel
Main Motor Percentage Load Meter
Through-Beam Abrasive Belt Tracking
Dial Indicators on Adjustable Drum/Platen Heads
Motorized Thickness Adjustment
Quick Release Outboard Support
Vacuum Conveyor Bed
U.L. Listed Components
Variable Speed Conveyor Drive
