NEW TIMESAVERS 2331-45-201

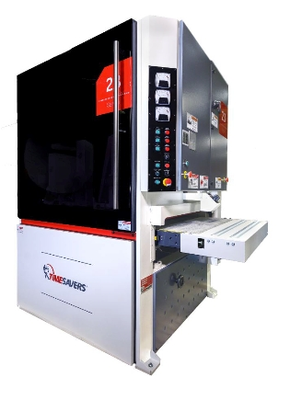

Timesavers Model 2331-45-201 Three Head 52" Planer Sander
Specifications:
Abrasive belt size: 52 x 103"
Main motors: 40, 25, 25HP
Maximum width stock: 51"
Minimum part length: 15"
Maximum thickness opening: 5"
Minimum finished thickness with planer head: 1/2"
Infeed loading area: 14"
Feed speed: 15-45 FPM
Passline height: 33-38"
Dust extraction: 7250CFM
Compressed air usage: 4 CFM @ 90psi
Standard Features:
7" Diameter Knife Head: (first head position)
8" Diameter Contact Drum: (second head position)
Dual Action Sanding Head: (third head position)
Anti-Kickback Assembly
Sectional Infeed Shoe
Dual Infeed and Dual Outfeed Holddown Rolls
Air Operated Disc Brakes
Motorized Thickness Adjustment
Centralized Control Panel
Dial Indicators on Adjustable Drum/Platen Heads
Hour Meter
Main Motor Percentage Load Meters
Four Jack Bed Construction
Through-Beam Abrasive Belt Tracking
Quick Release Outboard Support
Infeed Stop Bar
Variable Speed Conveyor Drive
Electronic Go-To Device
U.L. Listed Components
Spare Platen Assembly
Factory Start-up and Training
