NEW TIMESAVERS 2331-45-006

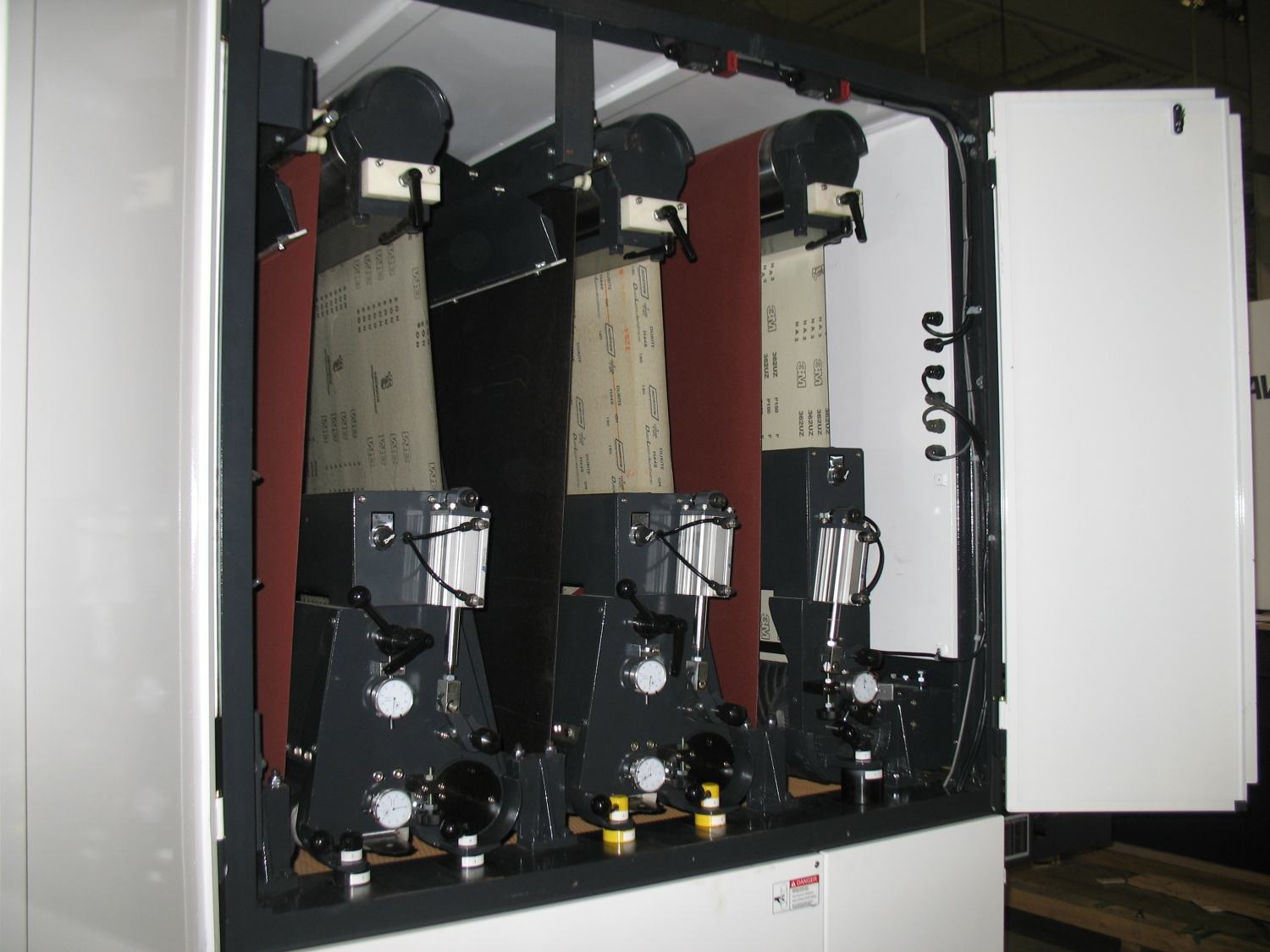

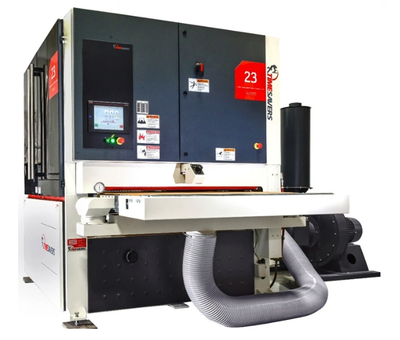

Timesavers Model 2331-45-006 Three Head 52" Segmented Widebelt/Polisher
Specifications:
Abrasive belt size: 52 x 103"
Main motor first head: 30HP
Main motor second and third heads: 25HP
Maximum width stock: 51"
Minimum part size: 6 x 6" with Vacuum
Maximum thickness opening: 5"
Infeed loading area: 14"
Feed speed: 15-45 FPM
Approximate full load amps at 460 volt: 150
Passline height: 33-38"
Dust extraction: 8950 CFM (5" Static Pressure)
Compressed air usage: 8CFM @ 90psi
Addt’l compressed air usage for belt blow-off: 41 CFM @ 90psi
Standard Features:
8" Diameter Contact Drum: (1st & 2nd head positions)
Dual Action Segmented Sanding Heads: (3rd position)
A.C. Variable Frequency Main Drive Motor: (3rd head)
Abrasive Belt Blow-Off On Third Head
Dual Infeed and Dual Outfeed Holddown Rolls
PLC Controller with HMI Interface
Panel Cleaning Brush
Air Operated Disc Brakes
Part Set-up Device
Infeed Stop Bar
Hour Meter
Centralized Control Panel
Main Motor Percentage Load Meter
Through-Beam Abrasive Belt Tracking
Dial Indicators on Adjustable Drum/Platen Heads
Motorized Thickness Adjustment
Quick Release Outboard Support
Vacuum Conveyor Bed
U.L. Listed Components
Variable Speed Conveyor Drive
