NEW TIMESAVERS 2321-45-06

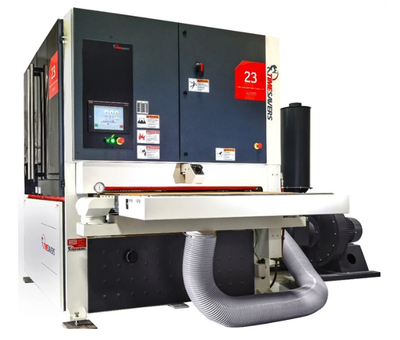

Timesavers Model 2321-45-06 Two Head 52" Segmented Widebelt/Polisher
Specifications:
Abrasive belt size: 52 x 103"
Main motor first head: 30HP
Main motor second head: 25HP
Maximum width stock: 51"
Minimum part size: 17"
Maximum thickness opening: 5"
Infeed loading area: 14"
Feed speed: 15-45FPM
Approximate full load amps at 460 volt: 85
Passline height: 33-38"
Dust extraction: 4260 CFM (5" Static Pressure)
Compressed air usage: 8 CFM @ 90psi
Standard Features:
8" Diameter Contact Drum: (first head position)
Dual Action Segmented Sanding Head
Dual Infeed and Dual Outfeed Holddown Rolls: PLC
Air Operated Disc Brakes
Part Set-up Device
Infeed Stop Bar
Hour Meter
Centralized Control Panel
Main Motor Percentage Load Meter
Through-Beam Abrasive Belt Tracking
Dial Indicators on Adjustable Drum/Platen Heads
Motorized Thickness Adjustment
Quick Release Outboard Support
U.L. Listed Components
Variable Speed Conveyor Drive
