USED 2008 OKUMA MULTUS B200-W

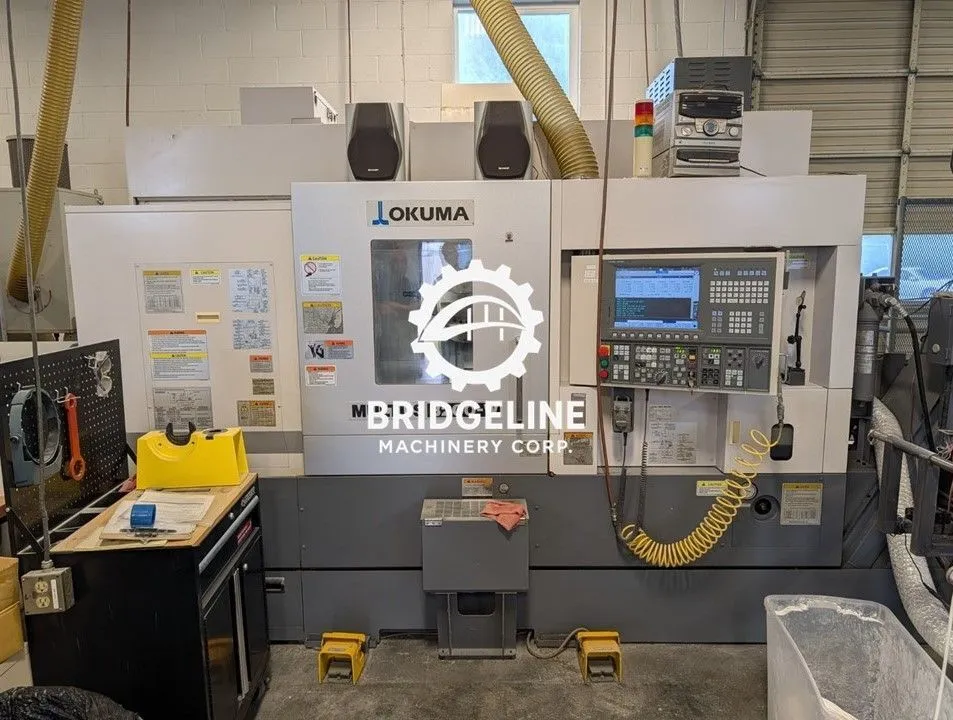

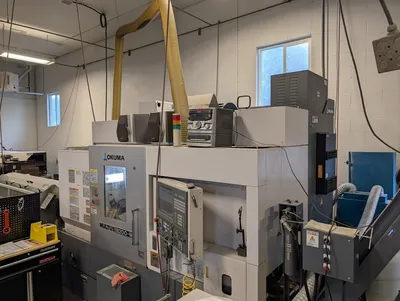

2008 Okuma MULTUS B200-W Multitasking CNC Mill-Turn Center

Available under power. This opposing-subspindle MULTUS B200-W is equipped with an Okuma OSP-P200L control, LNS Quick Six S2 bar feeder, high-pressure coolant equipment, upgraded control features, workholding, and an included tooling package. Power-on inspection is available by appointment.

Manufacturer: Okuma
Model: MULTUS B200-W
Year: 2008

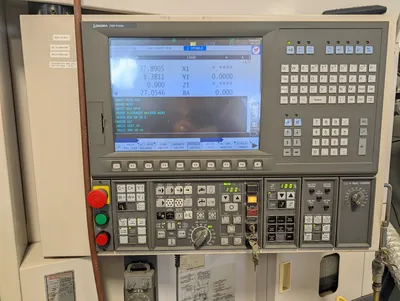

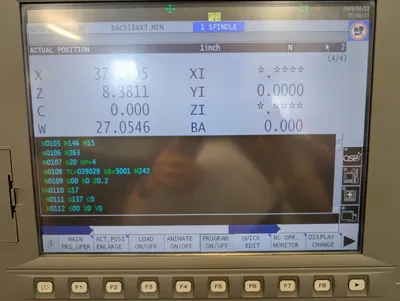

Control: Okuma OSP-P200L
Condition: Installed and under power
-
SPECIFICATIONS

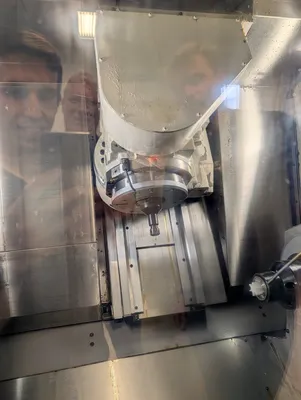

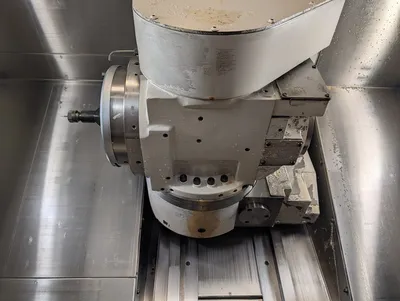

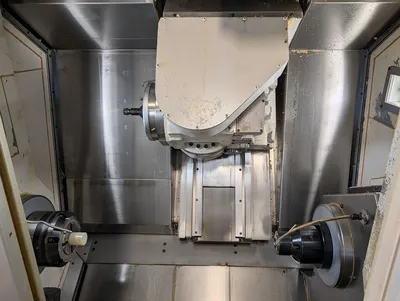

Machine Type: B-axis multitasking CNC mill-turn center with opposing subspindle
Maximum Turning Diameter: 23.62 in. / 600 mm
Distance Between Spindles: 29.53 in. / 750 mm
X-Axis Travel: 19.69 in. / 500 mm
Z-Axis Travel: 31.50 in. / 800 mm
Y-Axis Travel: 6.30 in. / 160 mm
W-Axis Travel: 31.89 in. / 810 mm
B-Axis Range: 225 degrees
B-Axis Minimum Increment: 0.001 degree
C-Axis: Full-contouring main and subspindle C-axes
Main Spindle Speed: Up to 6,000 RPM
Milling Spindle Speed: Up to 12,000 RPM
Chuck: 8 in. main chuck; opposing subspindle configuration

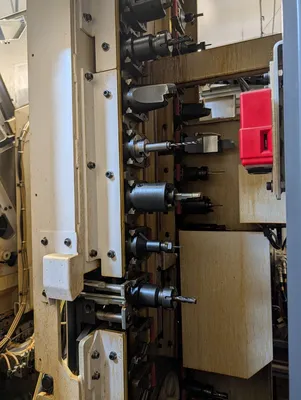

Automatic Tool Changer: 40-position
Electrical: 220/480V, 3-phase, 60 Hz, 35.5 kVA
-
EQUIPPED WITH

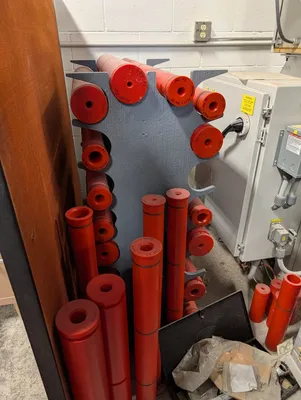

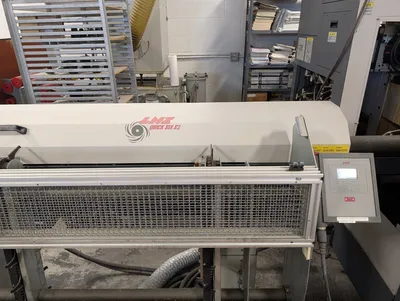

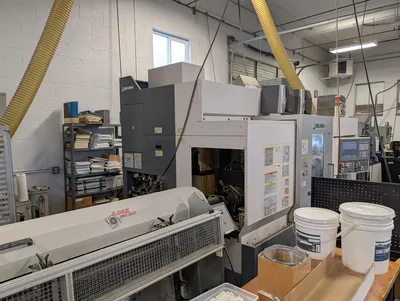

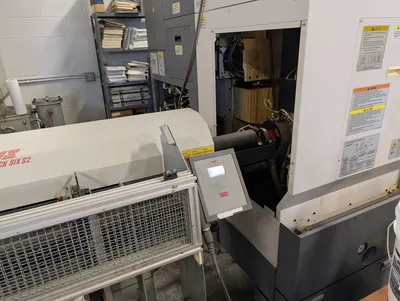

LNS Quick Six S2 bar feeder with guide tube sleeve for 1.75 in. bar

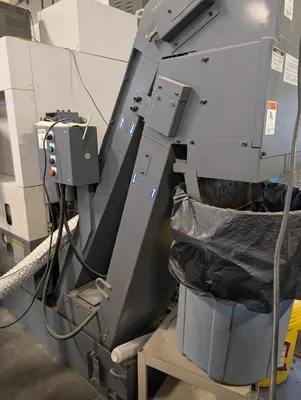

Hinge-type chip conveyor with high filter

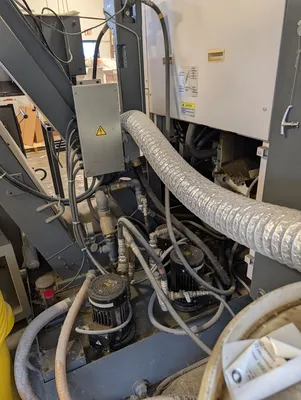

ChipBlaster JV10 high-pressure coolant system
MistBlaster mist collection system
Big-bore spindle package with cylinder, drawtube and 8 in. chuck

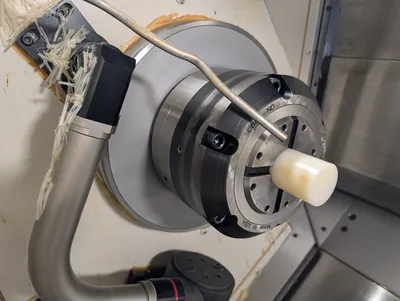

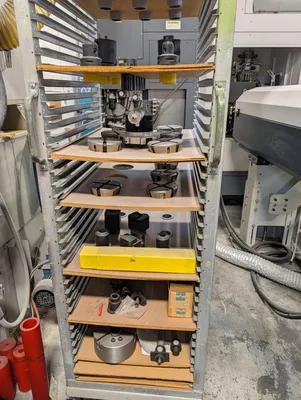

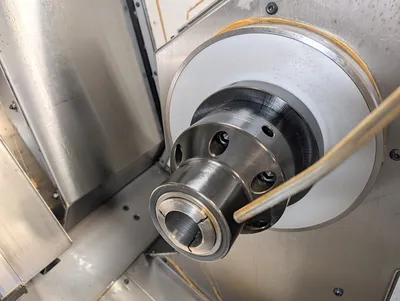

MicroCentric quick-change chuck, fixtures, smooth-bore collet and master collet
Sandvik tooling package
Touchsetter and parts catcher for subspindle
Through-spindle air blow for main and subspindle
Turret air blow
Synchronized tapping and off-center turning functions
Lathe tool index function, no-load monitor and automatic power shutoff
3D Virtual Monitor
OSP-P200L 1 GB memory upgrade, API / Lathe SDK and spare M-codes
-

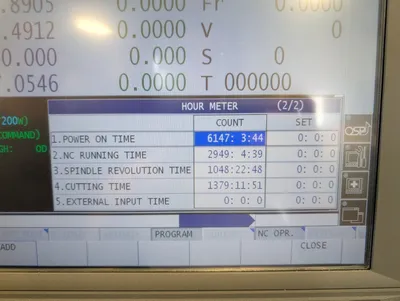

CONTROL-DISPLAYED HOURS

Power-On Time: 6,147:03:44
NC Running Time: 2,949:04:39
Spindle Revolution Time: 1,048:22:48
Cutting Time: 1,379:11:51
-

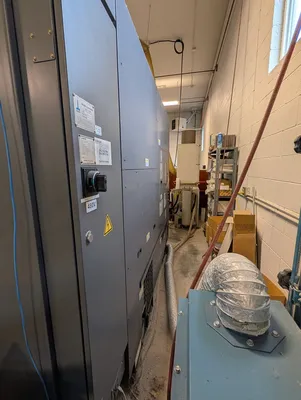

Machine is installed, under power and available for a power-on inspection by appointment. Additional photos and under-power videos are available upon request.

All specifications, hours and included equipment are subject to buyer verification.
-
