NEW TIMESAVERS 2321-45-66

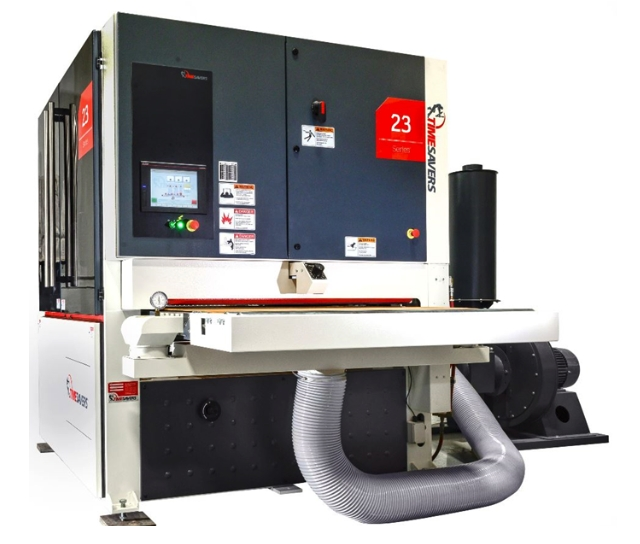

Timesavers Model 2321-45-66 Two Head 52" Segmented Widebelt/Polisher
Specifications:
Abrasive belt size: 52 x 103"
Main motor first head: 30HP
Main motor second head: 25HP
Maximum width stock: 51"
Minimum part size: 6" x 6" w/vacuum bed
Maximum thickness opening: 5"
Infeed loading area: 14"
Feed speed: 15-45FPM
Approximate full load amps at 460 volt: 107
Passline height: 33-38"
Dust extraction: 6500 CFM (5" Static Pressure)
Compressed air usage: 6 CFM @ 90psi
compressed air usage for belt blow-off: 41 CFM @ 90 psi
Standard Features:

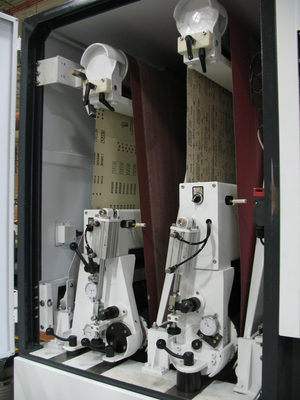

Dual Action Segmented Sanding Heads
A.C. Variable Frequency Main Drive Motor: (2nd head)
Abrasive Belt Blow-Off On Second Head
Dual Infeed and Dual Outfeed Holddown Rolls
PLC
Controller with HMI Interface
Panel Cleaning Brush
Air Operated Disc Brakes
Part Set-up Device
Infeed Stop Bar
Hour Meter
Centralized Control Panel
Main Motor Percentage Load Meter
Through-Beam Abrasive Belt Tracking
Dial Indicators on Adjustable Drum/Platen Heads
Motorized Thickness Adjustment
Quick Release Outboard Support
U.L. Listed Components
Variable Speed Conveyor Drive
Vacuum Conveyor Bed
