NEW TIMESAVERS 2321-24-66

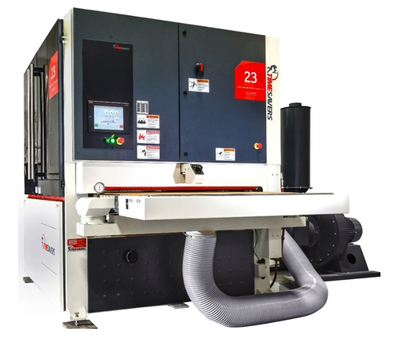

Timesavers Model 2321-24-66 Two Head 43" Segmented Widebelt/Polisher
Specifications:
Abrasive belt size: 52 x 103"
Main motor first head: 30HP
Main motor second head: 25HP
Maximum width stock: 51"
Minimum part size: 6" x 6" w/vacuum bed
Maximum thickness opening: 5"
Infeed loading area: 14"
Feed speed: 15-45FPM
Approximate full load amps at 460 volt: 106
Passline height: 33-38"
Dust extraction: 4260 CFM (5" Static Pressure)
Compressed air usage: 8 CFM @ 90psi
Addtional compressed air usage for belt blow-off: 41 CFM @ 90 psi
Standard Features:
8" Diameter Contact Drum: (first head position)
Dual Action Segmented Sanding Head
30 & 25 Horsepower Main Drive Motor
A.C. Variable Frequency Main Drive Motor: (2nd head)
Abrasive Belt Blow-Off On Second Head
Dual Infeed and Dual Outfeed Holddown Rolls: PLC
Controller with HMI Interface
Panel Cleaning Brush
Air Operated Disc Brakes
Part Set-up Device
Infeed Stop Bar
Hour Meter
Centralized Control Panel
Main Motor Percentage Load Meter
Through-Beam Abrasive Belt Tracking
Dial Indicators on Adjustable Drum/Platen Heads
Motorized Thickness Adjustment
Quick Release Outboard Support
U.L. Listed Components
Variable Speed Conveyor Drive
Vacuum Conveyor Bed
