NEW TIMESAVERS 2311-45-6

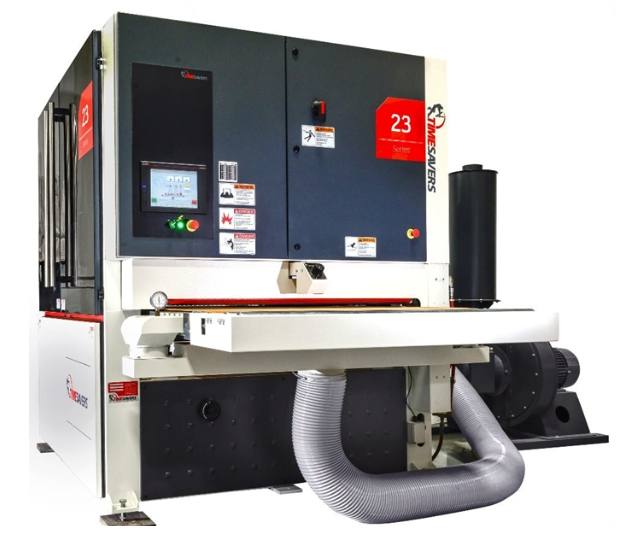

Timesavers Model 2311-45-6 Single Head 52" Segmented Widebelt/Polisher
Specifications:
Abrasive belt size: 52 x 103"
Main motor: 30HP
Maximum width stock: 51"
Minimum part size: 6 x 6 with vacuum bed
Maximum thickness opening: 5"
Infeed loading area: 14"
Feed speed: 15-45 FPM
Approximate full load amps at 460 volt: 67
Passline height: 33-38"
Dust extraction: 2850 CFM (5" static pressure)
Compressed air usage: 8 CFM @ 90 psi
compressed air usage for belt blow-off: 41 CFM @ 90 psi
Standard Features:

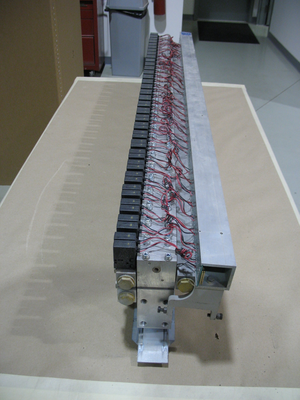

Dual Action Segmented Sanding Head
Infeed Stop Bar
A.C. Variable Frequency Main Drive Motor
Dual Infeed and Dual Outfeed Holddown Rolls
Air Operated Disc Brakes
Centralized Control Panel
Dial Indicators on Adjustable Drum/Platen Heads
PLC Controller with HMI Interface
Quick Release Outboard Support
Main Motor Percentage Load Meter
Hour Meter
Motorized Thickness Adjustment
Variable Speed Conveyor Drive
Part Set-up Device
Through-Beam Abrasive Belt Tracking
Abrasive Belt Blow-Off
U.L. Listed Components
Panel Cleaning Brush
Vacuum Conveyor Bed
