NEW TIMESAVERS 2321-24-06

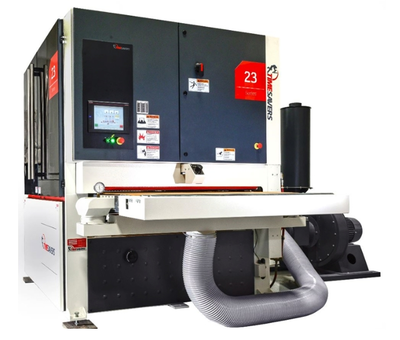

Timesavers Model 2321-24-06 Two Head 43" Segmented Widebelt/Polisher
Specifications:
Abrasive belt size: 43 x 75"
Main motor first head: 25HP
Main motor second head: 20HP
Maximum width stock: 42"
Minimum part size: 6 x 6 with vacuum bed
Maximum thickness opening: 5"
Infeed loading area: 14"
Feed speed: 15-45FPM
Approximate full load amps at 460 volt: 94
Passline height: 33-38"
Dust extraction: 3500 CFM (5" Static Pressure)
Compressed air usage: 6 CFM @ 90psi
Additional compressed air usage for belt blow-off: 41 CFM@ 90 psi
Standard Features:
8"Diameter Contact Drum (First Head)

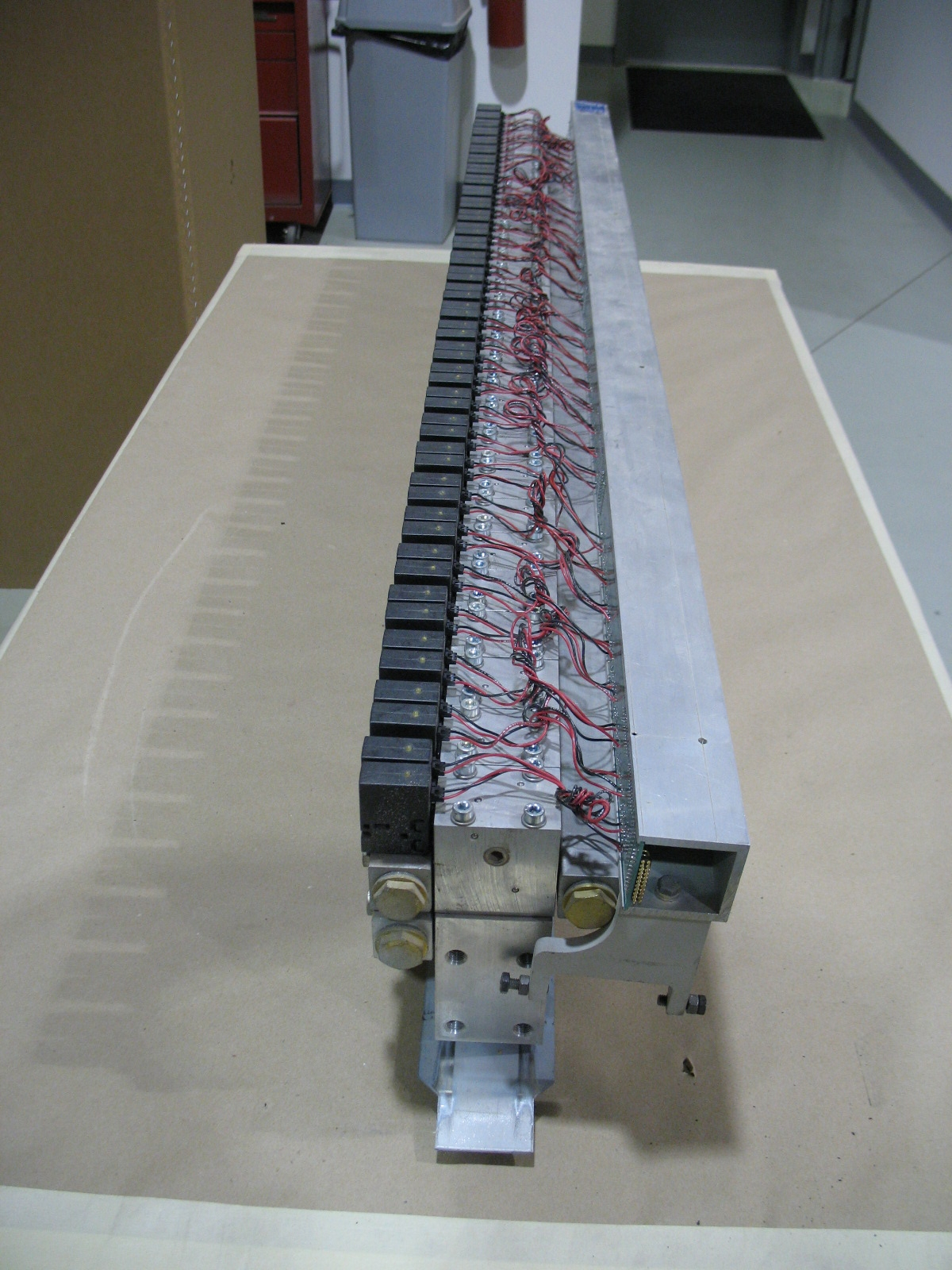

Dual Action Segmented Sanding Heads
A.C. Variable Frequency Main Drive Motor: (2nd head)
Abrasive Belt Blow-Off On Second Head
Dual Infeed and Dual Outfeed Holddown Rolls

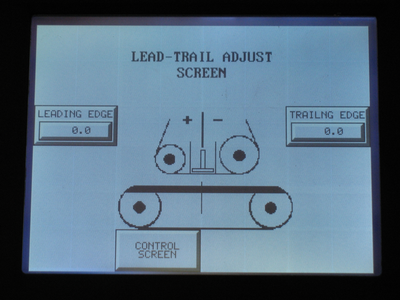

PLC Controller with HMI Interface
Panel Cleaning Brush
Air Operated Disc Brakes
Part Set-up Device
Infeed Stop Bar
Hour Meter
Centralized Control Panel
Main Motor Percentage Load Meter
Through-Beam Abrasive Belt Tracking
Dial Indicators on Adjustable Heads
Motorized Thickness Adjustment
Quick Release Outboard Support
Vacuum Conveyor Bed
U.L. Listed Components
Variable Speed Conveyor Drive
