NEW TIMESAVERS 2321-24-06

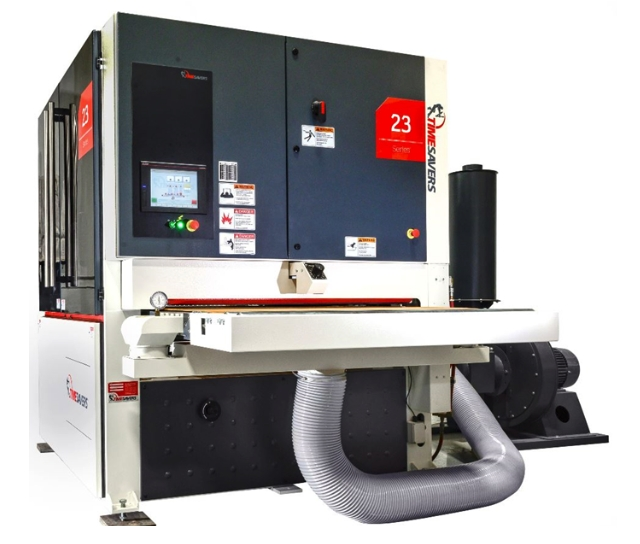

Timesavers Model 2321-24-06 Two Head 43" Segmented Widebelt/Polisher
Specifications:
Abrasive belt size: 43 x 75"
Main motor first head: 25HP
Main motor second head: 20HP
Maximum width stock: 42"
Minimum part size: 17"
Maximum thickness opening: 5"
Infeed loading area: 14"
Feed speed: 15-45FPM
Approximate full load amps at 460 volt: 77
Passline height: 33-38"
Dust extraction: 2700 CFM (5" Static Pressure)
Compressed air usage: 8 CFM @ 90psi
Standard Features:
8" Diameter Contact Drum: (first head position)
Dual Action Segmented Sanding Head
Infeed Stop Bar
Dual Infeed and Dual Outfeed Holddown Rolls
Multi Directional Rotary Brush
Air Operated Disc Brakes
Centralized Control Panel
Dial Indicators on Adjustable Drum/Platen Heads
PLC Controller with HMI Interface
Quick Release Outboard Support
Main Motor Percentage Load Meter
Hour Meter
Motorized Thickness Adjustment
Variable Speed Conveyor Drive
Part Set-up Device
Through-Beam Abrasive Belt Tracking
U.L. Listed Components
