NEW TIMESAVERS 2311-45-6

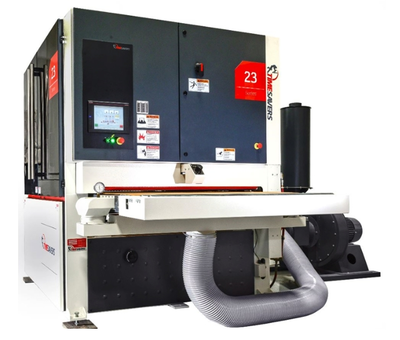

Timesavers Model 2311-45-6 Single Head 52" Segmented Widebelt/Polisher
Specifications:
Abrasive belt size: 52 x 103"
Main motor: 30HP
Maximum width stock: 51"
Minimum part size: 17"
Maximum thickness opening: 5"
Infeed loading area: 14"
Feed speed: 15-45 FPM
Approximate full load amps at 460 volt: 40
Passline height: 33-38"
Dust extraction: 1750 CFM (5" static pressure)
Compressed air usage: 4 CFM @ 90 psi
Addt’l compressed air usage for belt blow-off: 26 CFM @ 90 psi
Standard Features:

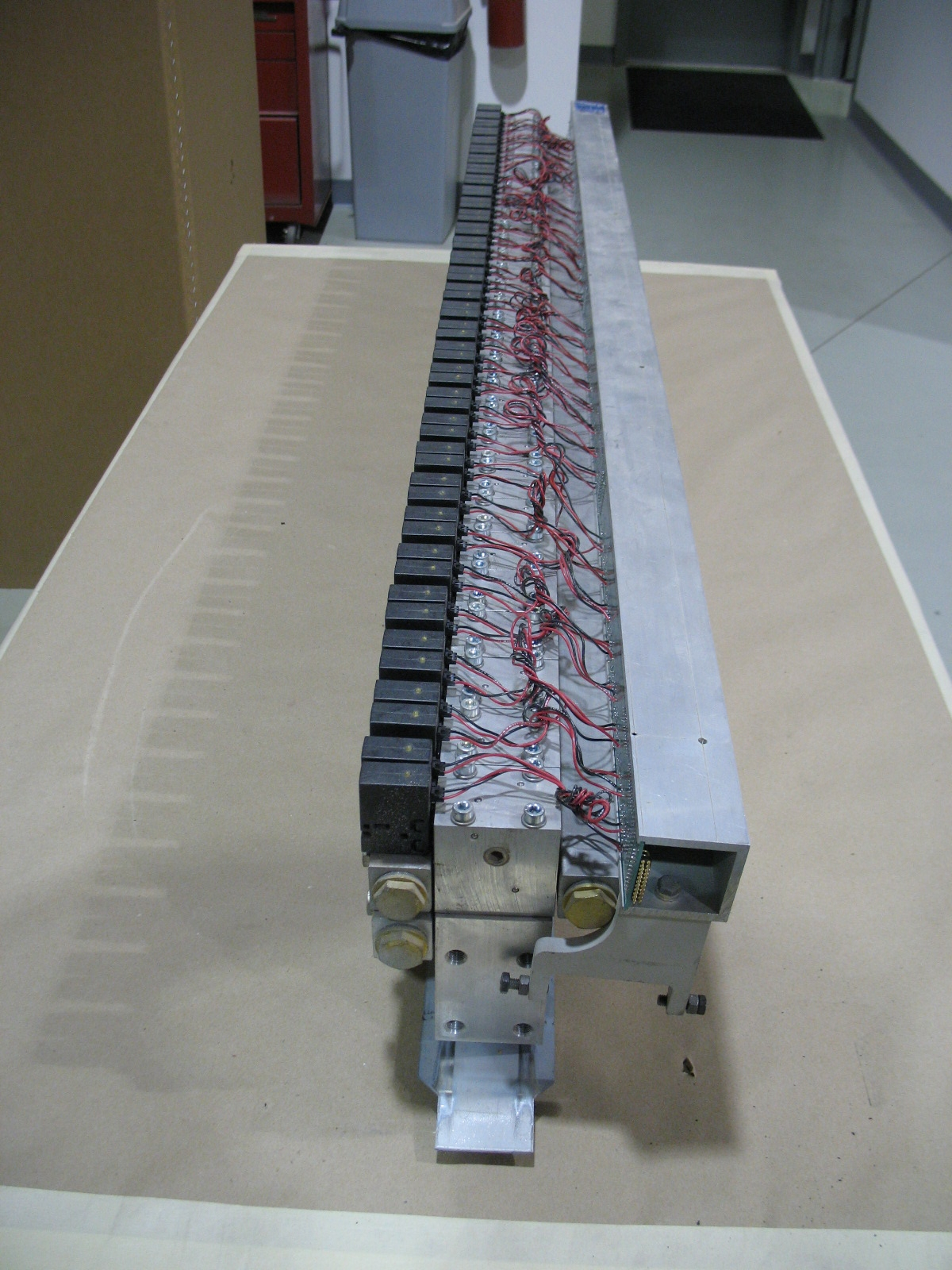

Dual Action Segmented Sanding Head
Infeed Stop Bar
Dual Infeed and Dual Outfeed Holddown Rolls
Air Operated Disc Brakes
Centralized Control Panel
Dial Indicators on Adjustable Drum/Platen Heads
PLC Controller with HMI Interface
Quick Release Outboard Support
Main Motor Percentage Load Meter
Hour Meter
Motorized Thickness Adjustment
Variable Speed Conveyor Drive
Part Set-up Device
Through-Beam Abrasive Belt Tracking
U.L. Listed Components
