NEW TIMESAVERS 3341-23-2001

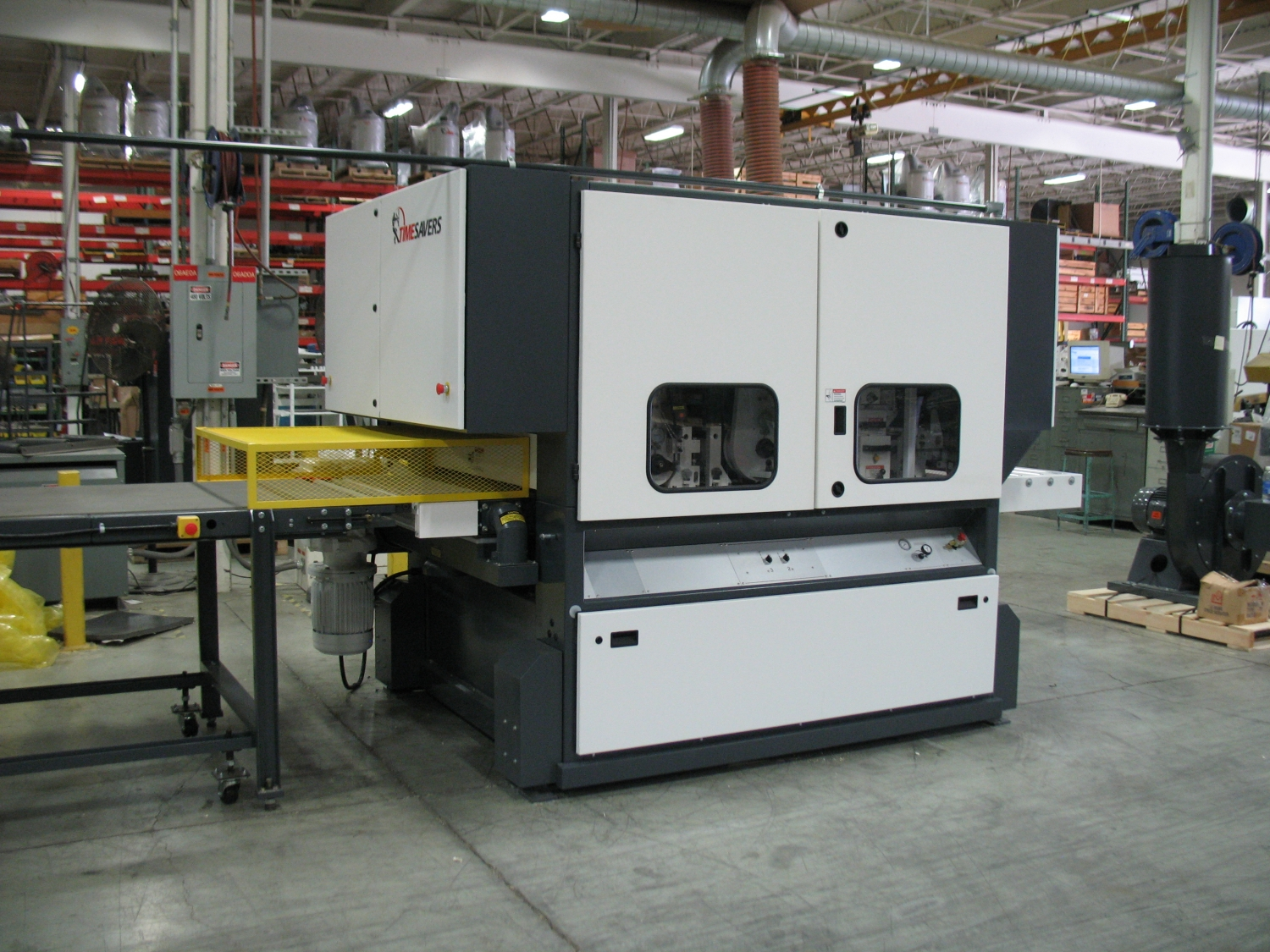

Timesavers Model 3341-23-2001 Four Head 52" High Production Planer/Sander
Specifications:
Abrasive belt size: 36"x75"
Main motors: 40, 30, 25, 25HP
Maximum width stock: 35"
Minimum part length roll to roll: 20.5"
Maximum thickness opening: 6"
Minimum finished thickness with planer head: 1/2"
Infeed loading area: 30"
Feed speed: 15-45 FPM
Passline height: 33-38"
Dust extraction: 5765 CFM (5" static pressure)
Compressed air usage: 6 CFM @ 90psi
Standard Features:
7" Diameter HD Knife Head: (first head position)
Contact Drum Heads: (second and third head positions)
Dual Action Sanding Head: (fourth head position)
Infeed Stop Bar
Infeed Roller Table
Anti-Kickback Assembly
Air Loaded Sectional Infeed Shoe
Holddown Shoes and Rolls
Air Operated Disc Brakes
Centralized Control Panel
Dial Indicators on Adjustable Knife/Drum heads
Air Pop Up on Drums/Platens
Quick Release Outboard Support
Main Motor Percentage Load Meter
Hour Meter
Four Jack Bed Construction
Motorized Thickness Adjustment
Electronic Go-To Device
Variable Speed Conveyor Drive
Through-Beam Abrasive Belt Tracking
U.L. Listed Components
Knife Head Maintenance Kit
Cutter Head Maintenance Stand
Factory Start-up and Training
