NEW TIMESAVERS 3321-25-21

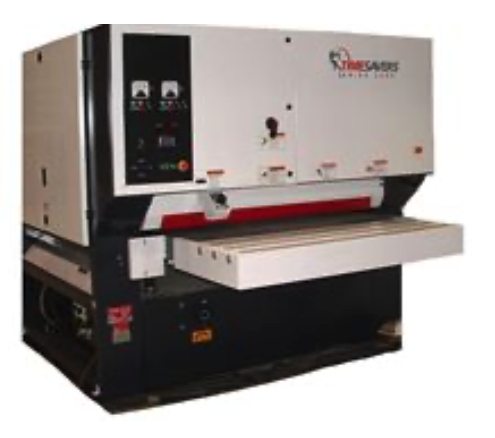

Timesavers Model 3321-25-21 Two Head High Production Planer/Sander
Specifications:
Abrasive size: 52" x 75"
Main motors: 40, 30HP
Maximum width stock: 51"
Minimum part length measured roll to roll: 21.5"
Maximum thickness opening: 6"
Minimum finish thickness with planer head: 1/2"
Infeed loading area: 30"
Feed speed: 15-45 FPM
Approximate full load amps at 460 volt: 117
Passline height: 32-38" variable
Dust extraction: 3660 CFM (5" static pressure)
Compressed air usage: 4 CFM @ 90psi
Standard Features:
7" Diameter HD Knife Head: (first head position)
Dual Action Sanding Head: (second head position)
Infeed Stop Bar
Infeed Roller Table
Anti-Kickback Assembly
Air Loaded Sectional Infeed Shoe
Holddown Shoes and Rolls
Air Operated Disc Brakes
Centralized Control Panel
Dial Indicators on Adjustable Knife/Drum heads
Air Pop Up on Drums/Platens
Quick Release Outboard Support
Main Motor Percentage Load Meter
Hour Meter
Four Jack Bed Construction
Motorized Thickness Adjustment
Electronic Go-To Device
Variable Speed Conveyor Drive
Through-Beam Abrasive Belt Tracking
U.L. Listed Components
Knife Head Maintenance Kit
Cutter Head Maintenance Stand
Factory Start-up and Training
