USED MENNEKES AMX4A-943236

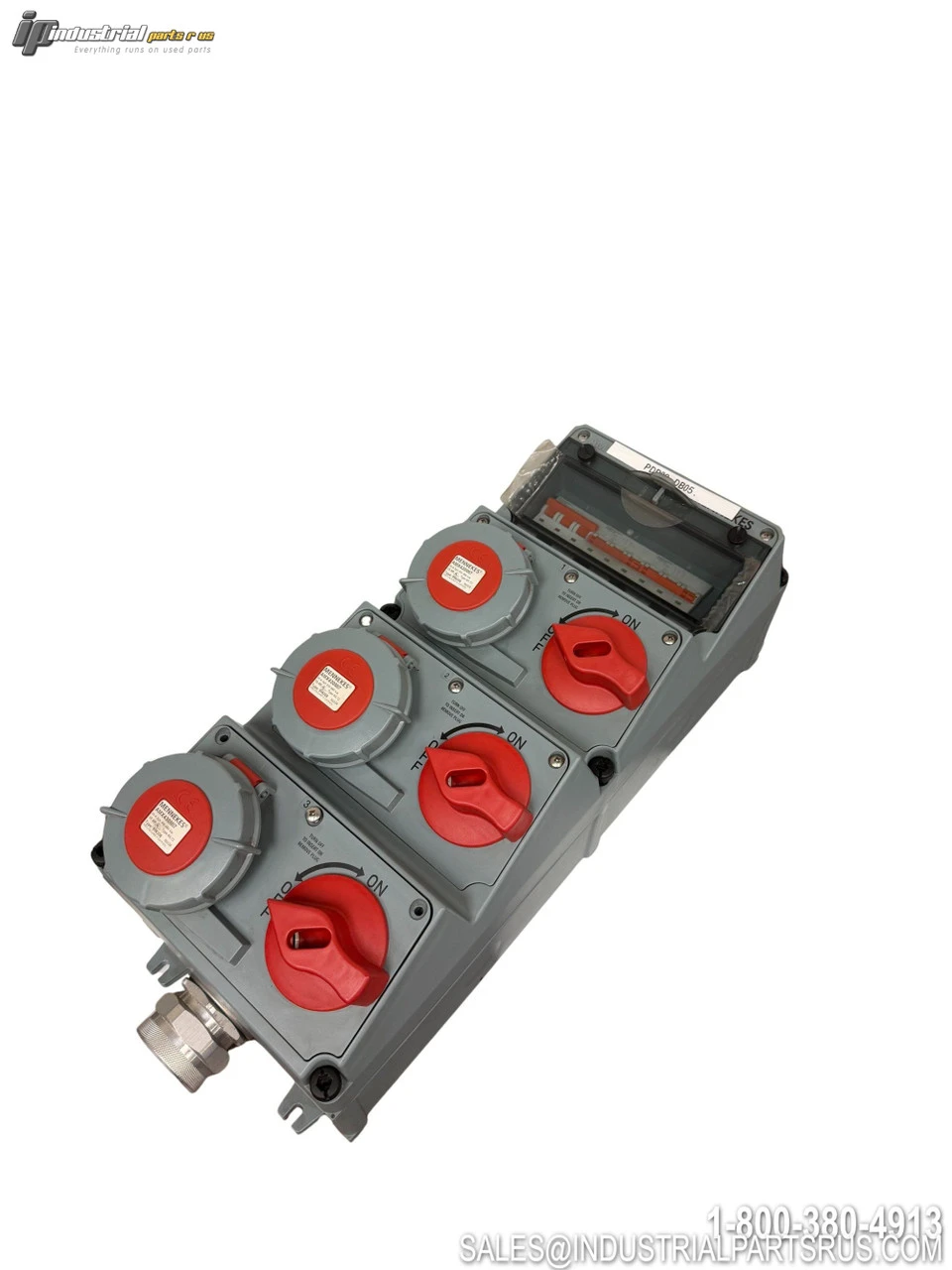

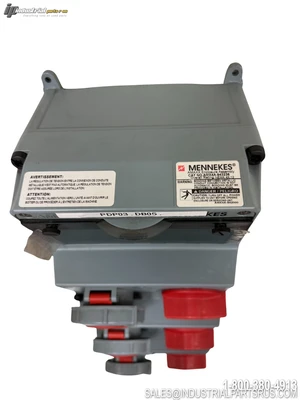

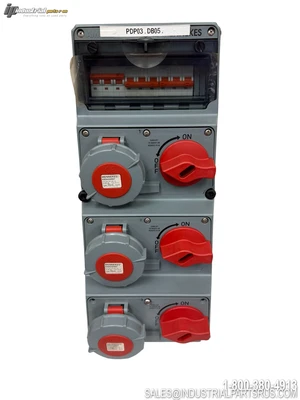

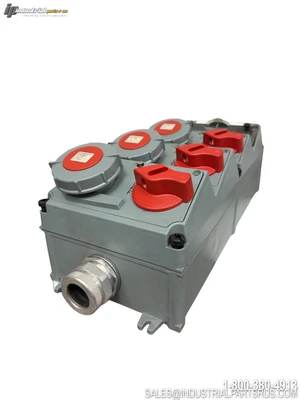

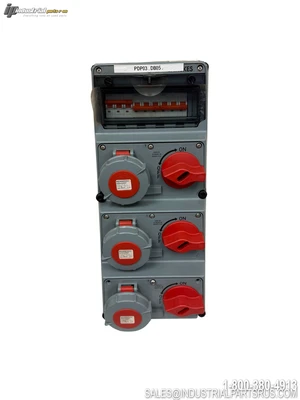

The Mennekes AMX4A-943236 is an AMAXX® Series standard power distribution center designed for industrial applications requiring rugged, switched, and interlocked power outlets. It is fitted with three 30A, 3-pole, 4-wire, 7h, 480VAC switched and interlocked IEC 60309 pin and sleeve receptacles, each protected by dedicated 3-pole, 30A, K-curve miniature circuit breakers (MCBs). The enclosure is constructed from AMAPLAST high-impact thermoplastic and meets NEMA Type 4X and Type 12 protection ratings (IP66), making it suitable for harsh, washdown, and corrosive industrial environments. The unit is wall-mount ready and ships pre-wired for fast installation.
Specification
Value
Brand
Mennekes
Model / Part Number
AMX4A-943236
Product Series
AMAXX®
Product Family
Standard Power Distribution
Number of Outlets / Receptacles
3
Receptacle Type
Switched and Interlocked
Rated Current per Outlet
30A
Voltage Rating
480VAC
Pole Configuration
3P, 4W (3-Pole, 4-Wire)
IEC Clock Position (Hour Code)
7h
Overcurrent Protection Device
3x MCB 30A, 3-Pole, K-Curve
Number of Modules
4
Enclosure Size (H x W)
520 x 225 mm
Enclosure Protection Type
Type 4X; Type 12
IP Rating
IP66
Phase
3-Phase
Material
AMAPLAST (High-Impact Thermoplastic)
Color
Gray
Mounting Style
Wall Mount
Orientation
Vertical
Operating Temperature
-25°C to +55°C
Resistance Properties
Corrosion Resistant, Chemical Resistant, UV Resistant
Maximum Power Output
25,920W (3 x 30A x 480V x 0.6)
Number in Pack
1
We warranty all items for 30 days from date of purchase.
