NEW TIMESAVERS 3331-45-067

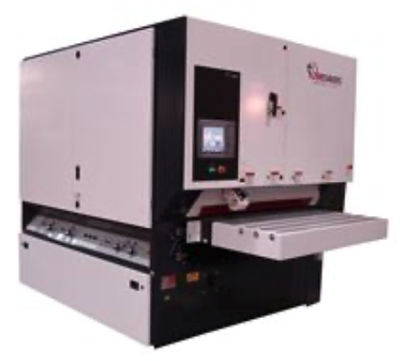

Timesavers Model 3331-45-067 Standard Three Head 52" Widebelt Polisher
Specifications:
Crossbelt abrasive belt size: 52" x 103"
Main motors: 30, 30, 30HP
Maximum width stock: 51"
Minimum part length with vacuum bed: 6"
Maximum thickness opening: 6"
Infeed loading area: 30"
Feed speed: 20-80 FPM
Approximate full load amps at 460 volt: 170
Passline height: 32"-38'
Dust extraction: 7245 CFM (5" static pressure)
Compressed air usage: 14 CFM @ 90 psi
Standard Features:
Drum Head: (1st head position)
Segmented D/A Sanding Head (2nd head position)
Segmented D/A Chevron Sanding Head (3rd position)
Infeed Stop Bar
Holddown Rolls
Air Operated Disc Brakes
Timesavers Simple Touch Controller
Dial Indicators on Adjustable Drum/Platen Heads
Air Pop Up on Drums/Platens
Quick Release Outboard Support
Main Motor Percentage Load Meter
Hour Meter
Four Jack Bed Construction
Motorized Thickness Adjustment
Panel Cleaning Brush
Variable Speed Conveyor Drive
U.L. Listed Components
Through-Beam Abrasive Belt Tracking
Vacuum Conveyor Bed
Factory Start-up and Training
