NEW TIMESAVERS 3331-45-866

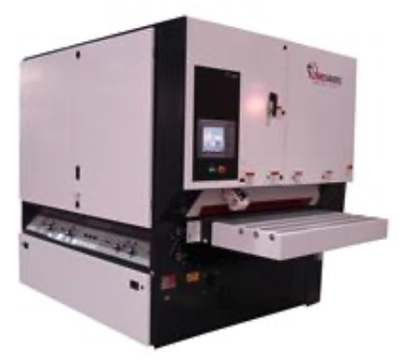

Timesavers Model 3331-45-866 Standard Three Head 52" Crossbelt-Widebelt/Polisher
Specifications:
Crossbelt abrasive belt size: 6" x 208"
Chevron belt size: 6" x 185"
Widebelt Abrasive belt size: 52" x 103"
Main motors: 25, 30, 30HP
Maximum width stock: 51"
Minimum part length with vacuum bed: 6"
Maximum thickness opening: 6"
Infeed loading area: 30"
Feed speed: 15-45 FPM
Approximate full load amps at 460 volt: 181
Passline height: 32"-38'
Dust extraction: 5600 CFM (5" static pressure)
Compressed air usage: 16 CFM @ 90 psi
Standard Features:
Segmented Crossbelt: (first head position)
Segmented D/A Sanding Heads: (2nd & 3rd positions)
Air Operated Disc Brakes
Holddown Rolls
PLC Controller with HMI Interface
Dial Indicators on Adjustable Contact Drum Heads
Quick Release Outboard Support
Main Motor Percentage Load Meter
Infeed Stop Bar
Hour Meter
Four Jack Bed Construction
Motorized Thickness Adjustment
U.L. Listed Components
Panel Cleaning Brush
Pop Up/Down on Contact Drums
Variable Speed Conveyor Drive
Abrasive Belt Blow-Off on all heads
A/C Frequency Drive on Crossbelt Head
A/C Frequency Drive on 2nd Sanding Head: (3rd position)
Vacuum Conveyor Bed
Factory Start-up and Training
