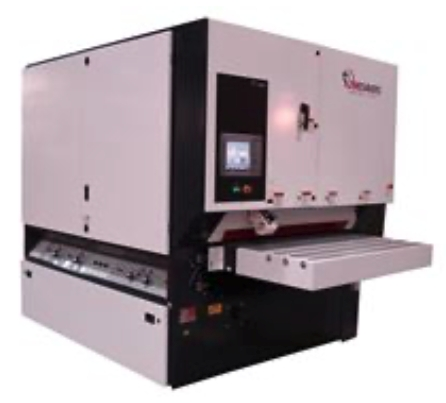

NEW TIMESAVERS 3331-25-006

Timesavers Model 3331-25-006 Standard Three Head 52" Widebelt/Polisher
Specifications:
Crossbelt abrasive belt size: 52" x 75"
Main motors: 40, 30, 30HP
Maximum width stock: 51"
Minimum part length with vacuum bed: 6"
Maximum thickness opening: 6"
Infeed loading area: 30"
Feed speed: 15-45 FPM
Approximate full load amps at 460 volt: 170
Passline height: 32"-38'
Dust extraction: 7245 CFM (5" static pressure)
Compressed air usage: 10 CFM @ 90 psi
Standard Features:
Drum Head: (first and second head positions)
Segmented Dual Action Sanding Head: (third position)
Infeed Stop Bar
Holddown Rolls
Air Operated Disc Brakes
PLC Controller with HMI Interface
Dial Indicators on Adjustable Drum/Platen Heads
Air Pop Up on Drums
Quick Release Outboard Support
Main Motor Percentage Load Meter
Hour Meter
Four Jack Bed Construction
Motorized Thickness Adjustment
Variable Speed Conveyor Drive
Through-Beam Abrasive Belt Tracking
Panel Cleaning Brush
U.L. Listed Components
Vacuum Conveyor Bed
Factory Start-up and Training
