NEW TIMESAVERS 3311-45-6

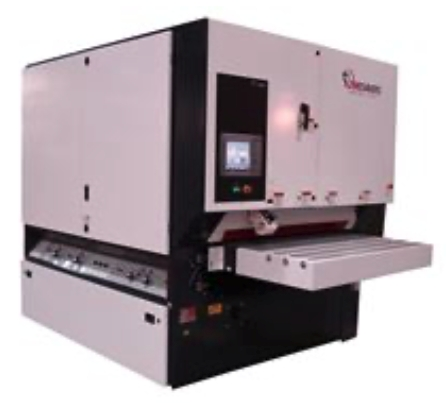

Timesavers Model 3311-45-6 Standard Single Head 52" Widebelt/Polisher
Specifications:
Abrasive belt size: 52 x 103"
Main motor: 30 HP
Maximum width stock: 51"
Minimum part length with vacuum bed: 6"
Maximum thickness opening: 6"
Feed speed: 15-45 FPM
Passline height: 32-38" variable
Dust extraction: 2850 CFM (5" static pressure)
8 CFM @ 90 psi
Addt’l compressed air usage for belt blow-off: 41 CFM @ 90 psi
Standard Features:
Segmented D/A Sanding Head
30 Horsepower Main Drive Motor
Air Operated Disc Brakes
Holddown Rolls
PLC Controller with HMI Interface
Dial Indicators on Adjustable Contact Drum Head
Quick Release Outboard Support
Main Motor Percentage Load Meter
Infeed Stop Bar
Hour Meter
Four Jack Bed Construction
Part Set-Up Device
Motorized Thickness Adjustment
U.L. Listed Components
Panel Cleaning Brush
Pop Up/Down on Contact Drum
Variable Speed Conveyor Drive
Abrasive Belt Blow-Off
Vacuum Conveyor Bed
A/C Frequency Drive on Sanding Head
Factory Start-up and Training
