NEW TIMESAVERS 3321-25-06

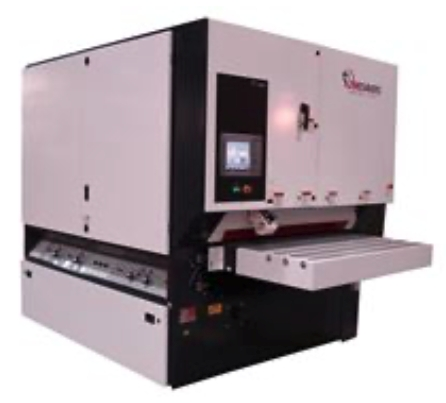

Timesavers Model 3321-25-06 Standard Two Head 52" Widebelt/Polisher
Specifications:
Abrasive belt size: 52 x 75"
Main motor first head: 40HP
Main motor second head: 30HP
Maximum width stock: 51"
Minimum part size: 6" w/vacuum bed
Infeed loading area: 30"
Feed speed: 15-45FPM
Approximate full load amps at 460 volt: 130
Passline height: 33-38"
Dust extraction: 5420 CFM (5" Static Pressure)
Compressed air usage: 8 CFM @ 90psi
Standard Features:
Drum Head: (first head position)
Segmented Dual Action Sanding Head: (second position)
Infeed Stop Bar
Holddown Rolls
Air Operated Disc Brakes
PLC Controller with HMI Interface
Dial Indicators on Adjustable Drum/Platen Heads
Air Pop Up on Drums/Platens
Quick Release Outboard Support
Main Motor Percentage Load Meter
Hour Meter
Four Jack Bed Construction
Motorized Thickness Adjustment
Variable Speed Conveyor Drive
Through-Beam Abrasive Belt Tracking
U.L. Listed Components
Panel Cleaning Brush
Vacuum Conveyor Bed
Factory Start-up and Training
